SKU: 6302LLU/5K-NTN

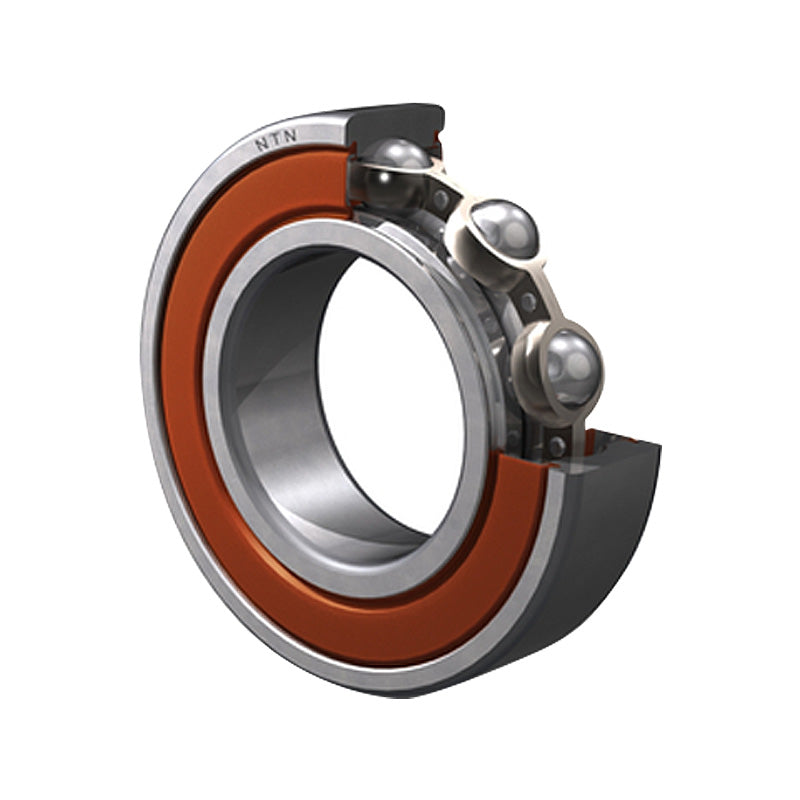

NTN 6302LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 15x42x13mm
Equivalent to: 6302LLUCM 6302NSE 6302DU 6302RS 6302RSH 6302P 6302RSR 6302LU 63022NSE 6302DDU 63022RS 6302-2RS 63022RS1 63022RSH 6302PP 63022RSR 6302LLU 6302RS2 63022RS2 63022RSL 6302LFS 6302EE 302P 302SZ Z9602 1302R
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 42mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 12.7 kN |
| C<sub>or</sub> | 5.45 kN |
| C<sub>u</sub> | 0.425 kN |
| f<sub>0</sub> | 12.3 kN |
| Speed | 12000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 20mm |
| d<sub>a</sub> Max. | 23mm |
| D<sub>a</sub> Max. | 37mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.082 kg |
