SKU: 6302-2Z-C3-NKE

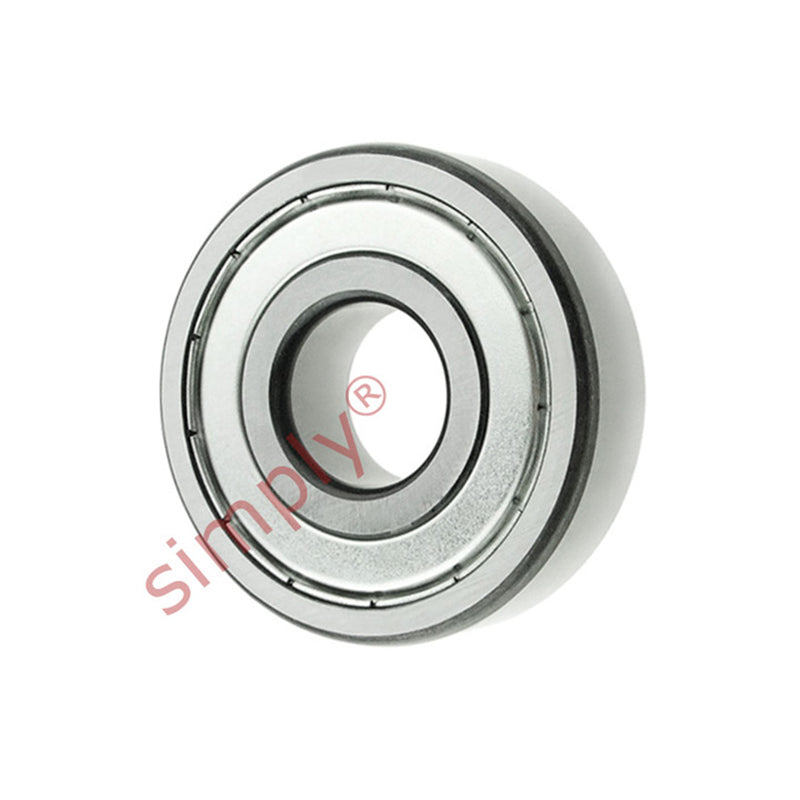

NKE 63022ZC3 Metal Shielded Deep Groove Ball Bearing 15x42x13mm
Equivalent to: 6302ZZEC3 6302ZZC3 6302.2ZC3 6302KDDC3 6302DDC3 63022ZRC3 6302FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 15mm |
|---|---|
| D | 42mm |
| B | 13mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 5.4 kN |
| Fatigue load limit Pu | 0.228 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 19000 rpm |
| Weight | 0.082 kg |
| d1 | 23.7mm |
| D2 | 36.3mm |
| r1r2 min | 1mm |
| da min | 20.6mm |
| Da max | 36.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 12 |
