SKU: 6302-2RSH-EU

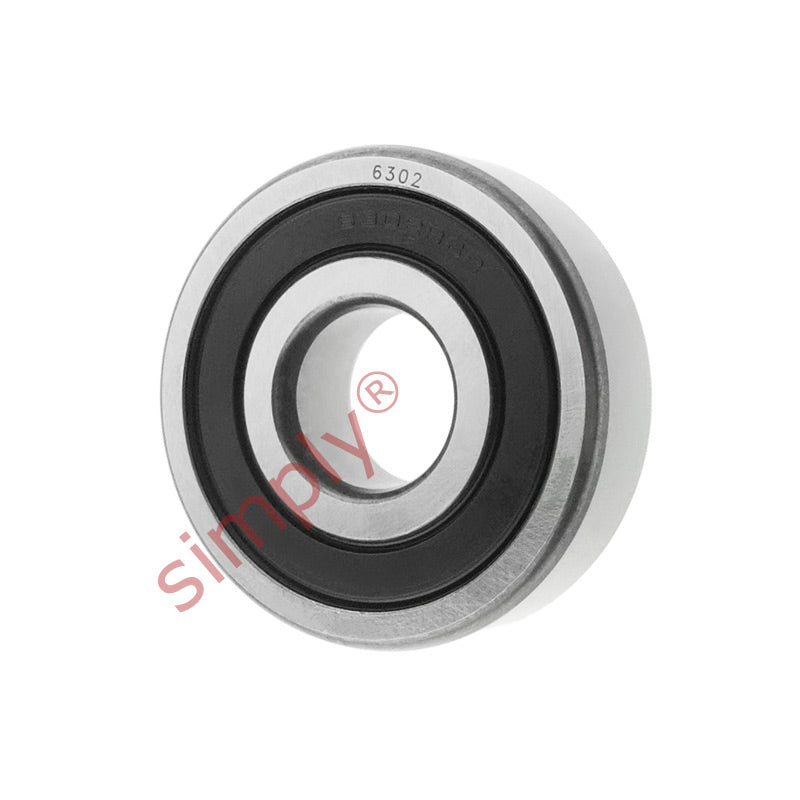

63022RS Budget Rubber Sealed Deep Groove Ball Bearing 15x42x13mm
Equivalent to: 6302NSE 6302DU 6302RS 63022RSH 6302P 6302RSR 6302LU 63022NSE 6302DDU 63022RS 63022RS1 6302PP 63022RSR 6302LLU 63022RS2 6302RS2 63022RS1
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 42mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 11.4 kN |
| Static load Cor | 5.45 kN |
| Speed in grease | 17000 rpm |
| Speed in oil | 20000 rpm |
