SKU: 63/32NR-NTN

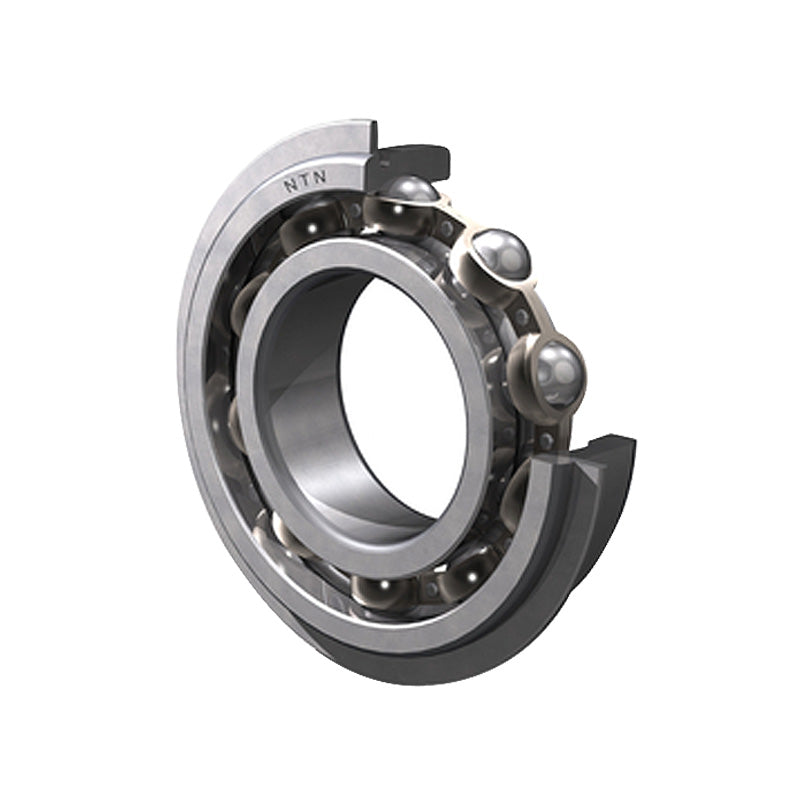

NTN 63/32NR Open Type Deep Groove Ball Bearing with Snap Ring 32x75x20mm
NTN 63/32NR Open Type Deep Groove Ball Bearing with Snap Ring 32x75x20mm
Regular price
$66.87
ex VAT
Regular price
Sale price
$66.87
ex VAT
Equivalent to: 63/32NRCM 7B32NR
In stock
Price Break
3+
$31.71
5+
$29.93
10+
$29.57
25+
$29.22
49+
$28.86
74+
$28.50
99+
$26.72
199+
$26.37
249+
$26.01
499+
$25.65
999+
$24.94
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 75mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 32mm |
| D | 75mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 33 kN |
| C<sub>or</sub> | 16.9 kN |
| C<sub>u</sub> | 1.3 kN |
| f<sub>0</sub> | 13.1 kN |
| Grease | 9500 rpm |
| Oil | 11000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 71.83mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 81.6mm |
| f Max. | 1.7mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 38.5mm |
| d<sub>a</sub> Max. | 43.5mm |
| D<sub>a</sub> Max. | 68.5mm |
| D<sub>X</sub> (approx) | 83mm |
| C<sub>Y</sub> Max. | 4.6mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.382 kg |
