SKU: 63/22LLU/5K-NTN

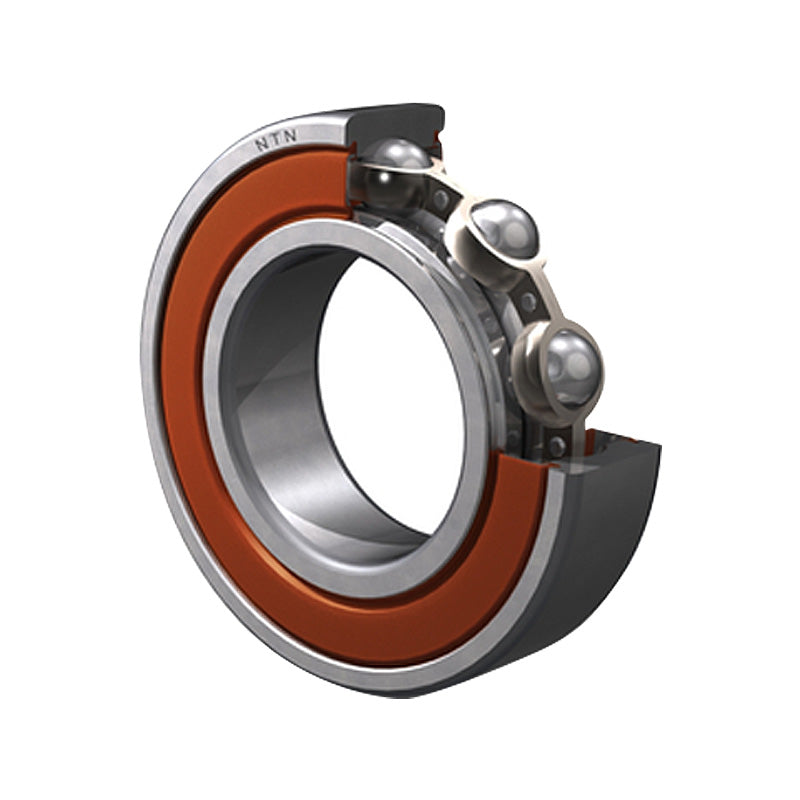

NTN 63/22LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 22x56x16mm
Equivalent to: 63/22LLUCM 63/22LLU 63/22NSE 63/22DU 63/22RS 63/22RSH 63/22P 63/22RSR 63/22LU 63/222NSE 63/22DDU 63/222RS 63/22-2RS 63/222RS1 63/222RSH 63/22PP 63/222RSR 63/22LLU 63/22RS2 63/222RS2 63/222RSL 63/22LFS 63/22EE
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 56mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 22mm |
| D | 56mm |
| B | 16mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 20.4 kN |
| C<sub>or</sub> | 9.25 kN |
| C<sub>u</sub> | 0.725 kN |
| f<sub>0</sub> | 12.4 kN |
| Speed | 9200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 28.5mm |
| d<sub>a</sub> Max. | 31mm |
| D<sub>a</sub> Max. | 49.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.176 kg |
