SKU: 628-2Z-C3-NKE

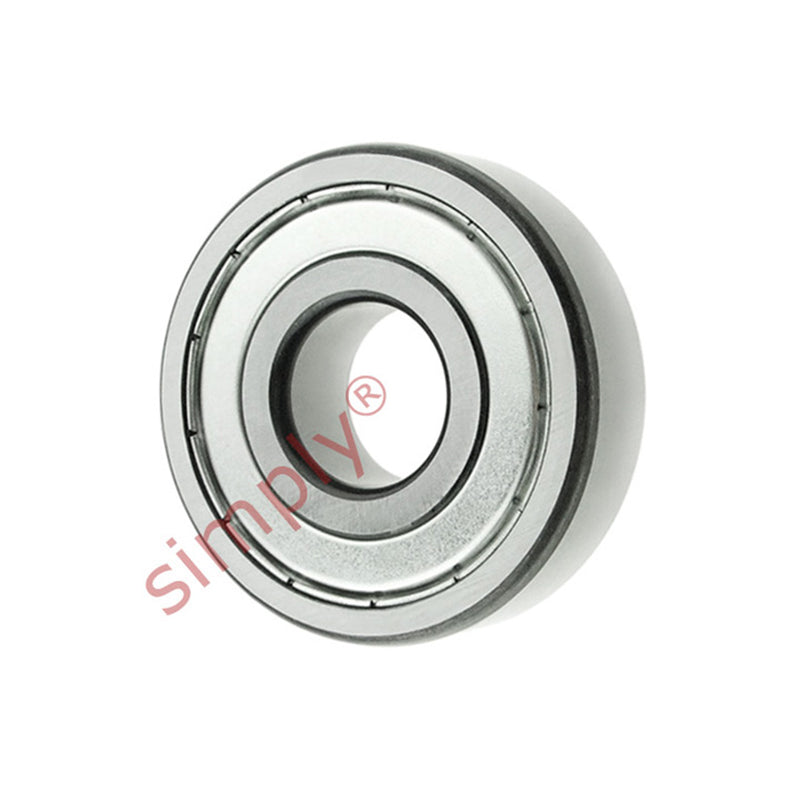

NKE 6282ZC3 Metal Shielded Deep Groove Ball Bearing 8x24x8mm
Equivalent to: 628ZZEC3 628ZZC3 628.2ZC3 628KDDC3 628DDC3 6282ZRC3 628FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 24mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 8mm |
|---|---|
| D | 24mm |
| B | 8mm |
| Dynamic load C | 3.9 kN |
| Static load Co | 1.66 kN |
| Fatigue load limit Pu | 0.071 kN |
| Reference speed | 63000 rpm |
| Limiting speed | 32000 rpm |
| Weight | 0.017 kg |
| d1 | 14.5mm |
| D2 | 20.6mm |
| r1r2 min | 0.3mm |
| da min | 10.4mm |
| Da max | 21.6mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
