SKU: 623-2RSR-C3-FAG

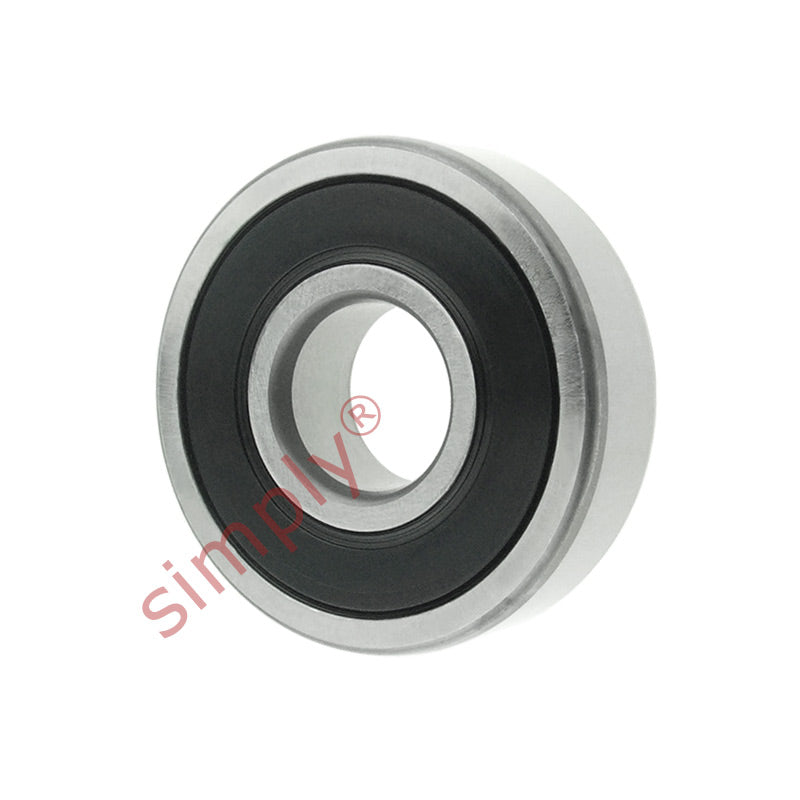

FAG 6232RSRC3 Rubber Sealed Deep Groove Ball Bearing 3x10x4mm
FAG 6232RSRC3 Rubber Sealed Deep Groove Ball Bearing 3x10x4mm
Equivalent to: 623NSEC3 623DUC3 623RSC3 623RSHC3 623PC3 623RSRC3 623LUC3 6232NSEC3 623DDUC3 6232RSC3 6232RS1C3 6232RSHC3 623PPC3 623LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 10mm
- Width:
- 4mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 3mm |
|---|---|
| D | 10mm |
| B | 4mm |
| Dynamic load C | 0.54 kN |
| Static load Co | 0.18 kN |
| Fatigue load limit Pu | 0.007 kN |
| Reference speed | 130000 rpm |
| Limiting speed | 40000 rpm |
| Mass | 0.0015 kg |
| d1 | 5.2mm |
| D2 | 8.2mm |
| r1r2 min | 0.15mm |
| da min | 4.2 |
