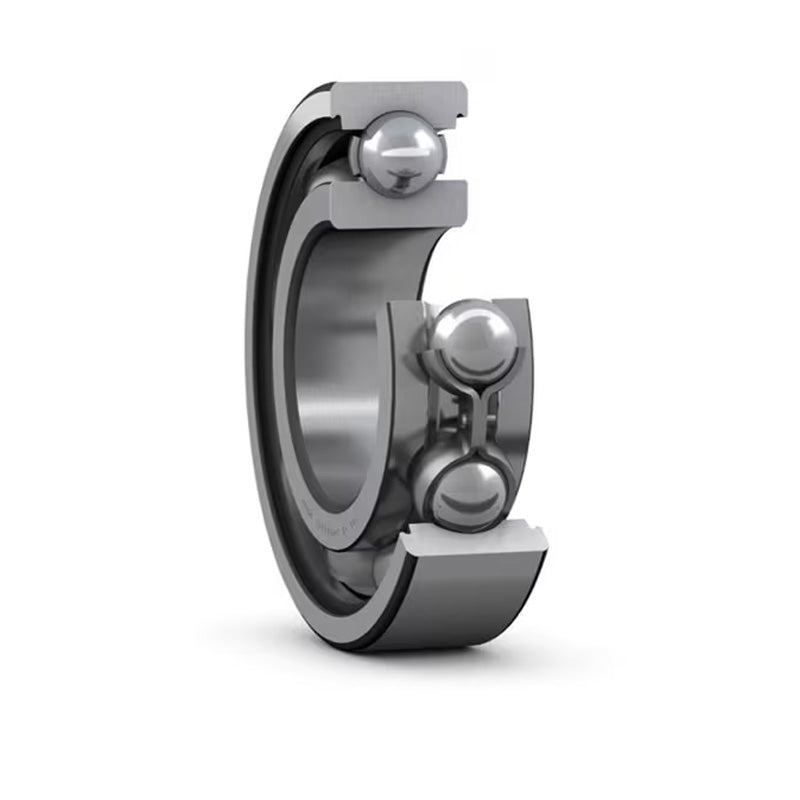

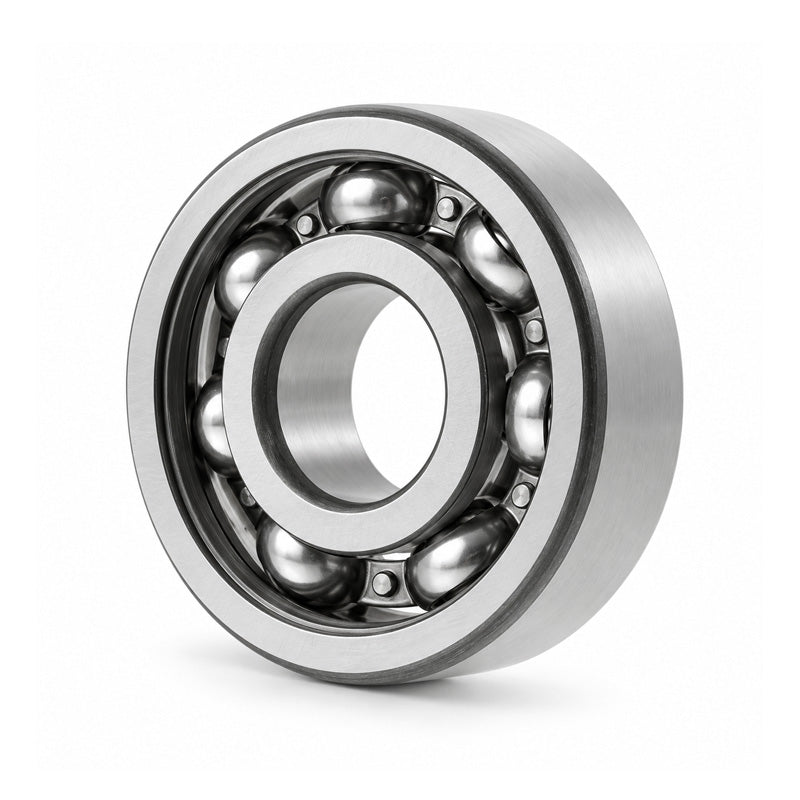

SKF 6221MC4VL0241 Open Deep Groove Ball Bearing 105x190x36mm
SKF 6221MC4VL0241 Open Deep Groove Ball Bearing 105x190x36mm
Out of stock
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 190mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 105mm |
|---|---|
| D | 190mm |
| B | 36mm |
| Dynamic load | 140 kN |
| Static load | 104 kn |
| Fatigue load limit Pu | 3.65 kN |
| Reference speed | 7000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 3.7 kg |
| d1 | 131mm |
| D1 | 163mm |
| D2 | 167mm |
| r1r2 min | 2.1mm |
| da min | 117mm |
| Da max | 178mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 14 |
