SKU: 6218-ZZ-NACHI
NACHI 6218ZZ Metal Shielded Deep Groove Ball Bearing 90x160x30mm
NACHI 6218ZZ Metal Shielded Deep Groove Ball Bearing 90x160x30mm
Regular price
$237.36
ex VAT
Regular price
Sale price
$237.36
ex VAT
Equivalent to: 6218ZZE 62182Z 6218.2Z 6218KDD 6218DD 62182ZR 6218FF
In stock
Price Break
5+
$112.56
9+
$106.23
19+
$104.97
29+
$103.71
49+
$102.44
74+
$101.18
99+
$94.85
199+
$93.59
249+
$92.32
499+
$91.06
999+
$88.53
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard

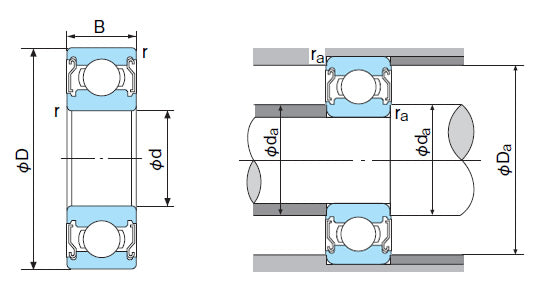

Technical
Technical
| Inside Diameter d | 90mm |
|---|---|
| Outside Diameter D | 160mm |
| Width B | 30mm |
| Min radius r | 2mm |
| Dynamic load | 96000 kN |
| Static load | 71500 kN |
| Max speed | 4000 rpm |
| da min | 100mm |
| Da max | 150mm |
| ra max | 2mm |
| Weight | 2.15 kg |
