SKU: 6215ZZC3/5K-NTN

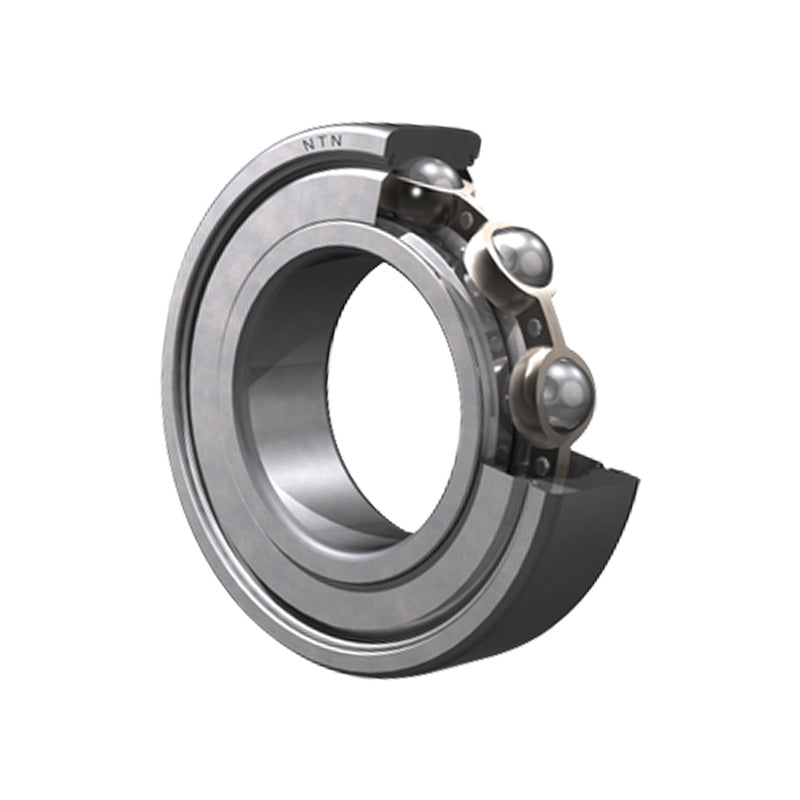

NTN 6215ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 75x130x25mm
Equivalent to: 6215ZZC3 62152ZC3 6215ZZC3 62152ZRC3 6215ZZEC3 6215FFC3 6215DDC3 6215DDCC3 6215KDDCC3 EL752ZC3 EL75ZZC3 9115KDDC3 9115FFC3 115KSFFC3 773L15C3 6115PPC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 130mm |
| B | 25mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 73.5 kN |
| C<sub>or</sub> | 49.5 kN |
| C<sub>u</sub> | 3.8 kN |
| f<sub>0</sub> | 14.7 kN |
| Grease | 4800 rpm |
| Oil | 5600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 83mm |
| d<sub>a</sub> Max. | 90.5mm |
| D<sub>a</sub> Max. | 122mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 1.18 kg |
