SKU: 6215-2Z-HT-330-FAG

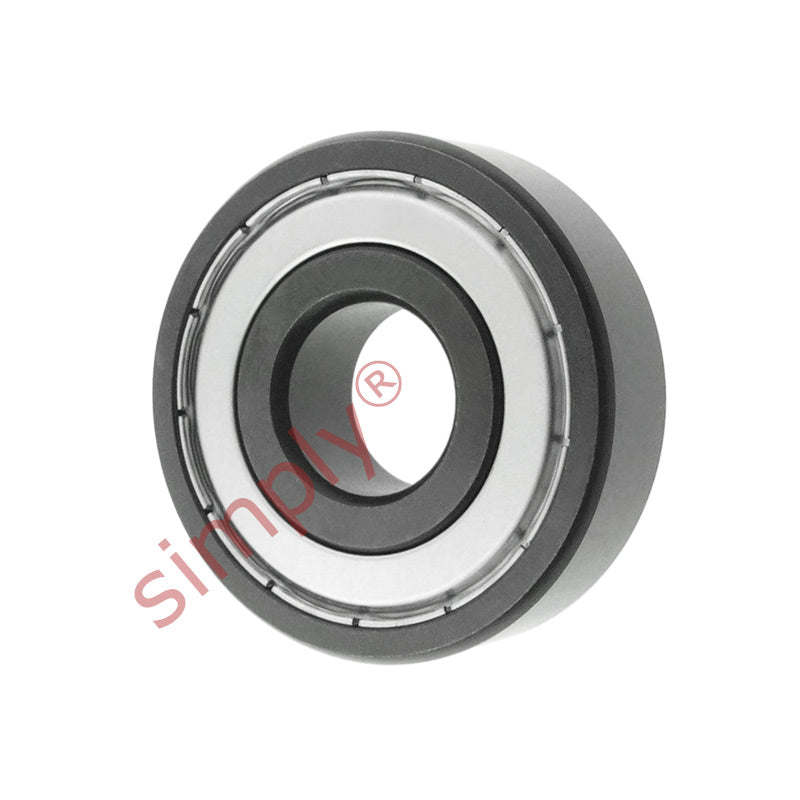

FAG 6215ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 75x130x25mm Max 55rpm
FAG 6215ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 75x130x25mm Max 55rpm
Equivalent to: 62152ZVA201 62152ZVA208 62152ZVA228
Out of stock
Share this product
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 75mm |
|---|---|
| Outside diameter D | 130mm |
| Width W | 25mm |
| Static load max | 28.32 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 55 rpm |
| Weight | 1210 g |
