SKU: 6213DDUC3-NSK
NSK 6213DDUC3 Rubber Sealed Deep Groove Ball Bearing 65x120x23mm
NSK 6213DDUC3 Rubber Sealed Deep Groove Ball Bearing 65x120x23mm
Regular price
$75.92
ex VAT
Regular price
Sale price
$75.92
ex VAT
Equivalent to: 6213NSEC3 6213DUC3 6213RSC3 6213RSHC3 6213PC3 6213RSRC3 6213LUC3 62132NSEC3 62132RSC3 62132RS1C3 62132RSHC3 6213PPC3 62132RSRC3 6213LLUC3
In stock
Price Break
4+
$36.00
10+
$33.98
20+
$33.58
30+
$33.17
50+
$32.77
75+
$32.36
100+
$30.34
200+
$29.94
250+
$29.53
500+
$29.13
1000+
$28.32
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3

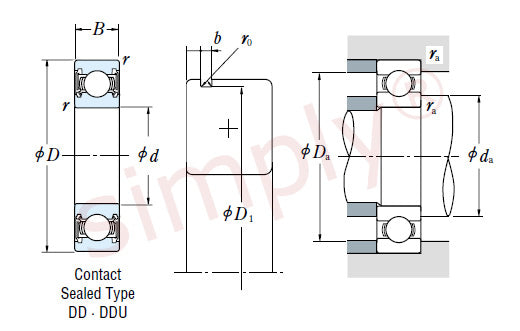

Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| r min | 1.5mm |
| Dynamic load Cr | 57500 N (5850 kgf) |
| Static load Cor | 40000 N (4100 kgf) |
| Factor | 14.4 |
| Speed in grease | 3600 rpm |
| Speed in oil | 6300 rpm |
| Weight | 1 kg |
