SKU: 6212ZZC4/5K-NTN

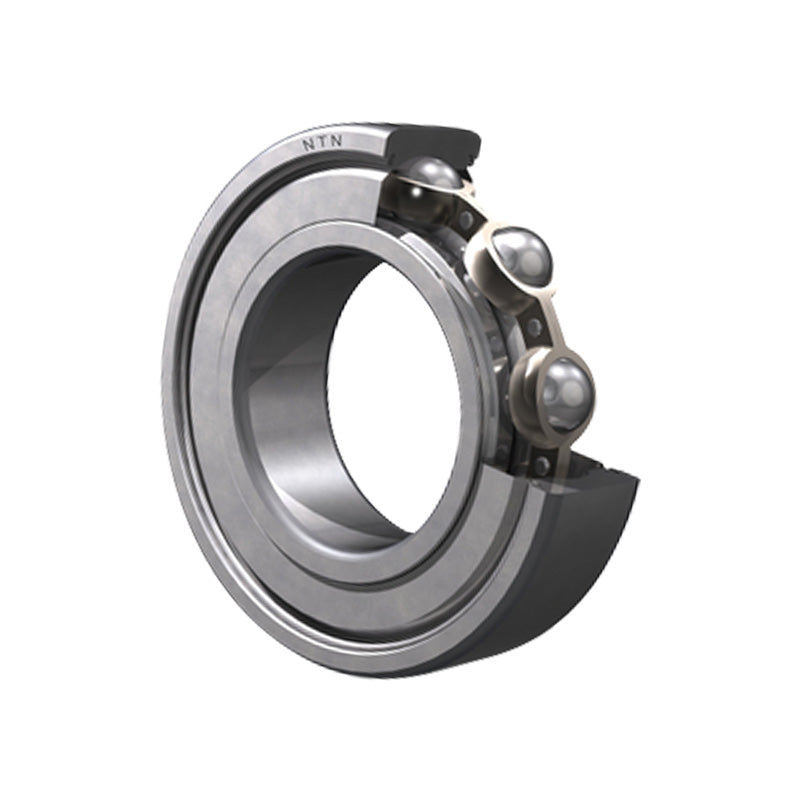

NTN 6212ZZC4/5K Metal Shielded Type Deep Groove Ball Bearing 60x110x22mm
Equivalent to: 6212ZZC4 62122ZC4 6212ZZC4 62122ZRC4 6212ZZEC4 6212FFC4 6212DDC4 6212DDCC4 6212KDDCC4 EL602ZC4 EL60ZZC4 9112KDDC4 9112FFC4 112KSFFC4 773L12C4 6112PPC4
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 110mm |
| B | 22mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 58 kN |
| C<sub>or</sub> | 36 kN |
| C<sub>u</sub> | 2.83 kN |
| f<sub>0</sub> | 14.3 kN |
| Grease | 6000 rpm |
| Oil | 7000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 68mm |
| d<sub>a</sub> Max. | 75mm |
| D<sub>a</sub> Max. | 102mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.783 kg |
