SKU: 6210-2Z/C3-KOY

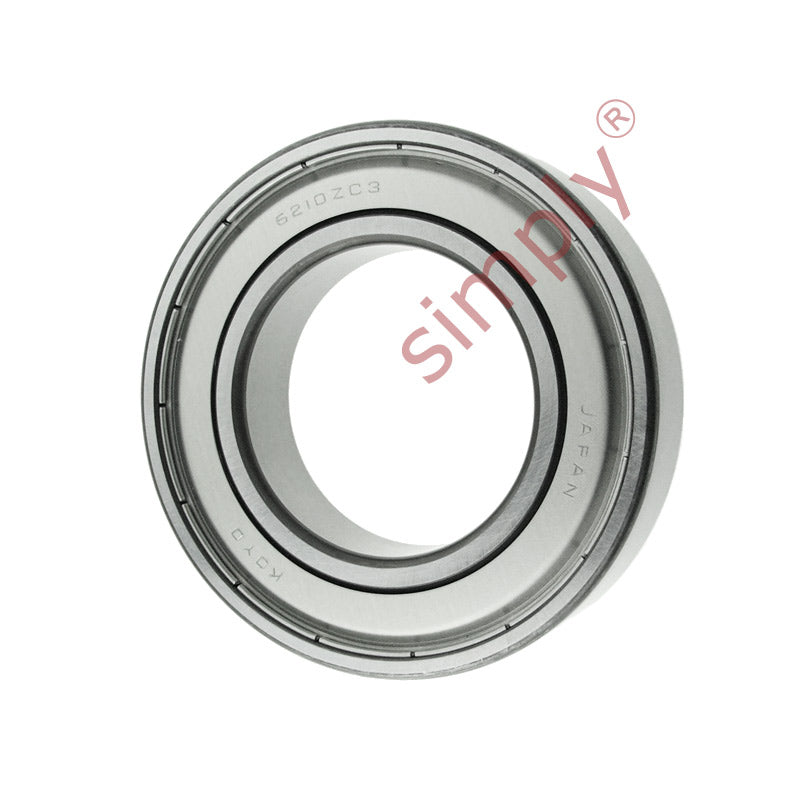

KOYO 62102ZC3 Metal Shielded Deep Groove Ball Bearing 50x90x20mm
Equivalent to: 6210ZZEC3 6210ZZC3 6210.2ZC3 6210KDDC3 6210DDC3 62102ZRC3 6210FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 20mm |
| Min radius r | 1.1mm |
| Dynamic load | 35.1 kN |
| Static load | 23.3 kN |
| Max speed in oil | 8500 rpm |
| Max speed in grease | 4600 rpm |
