SKU: 6209-2Z-C3-NKE

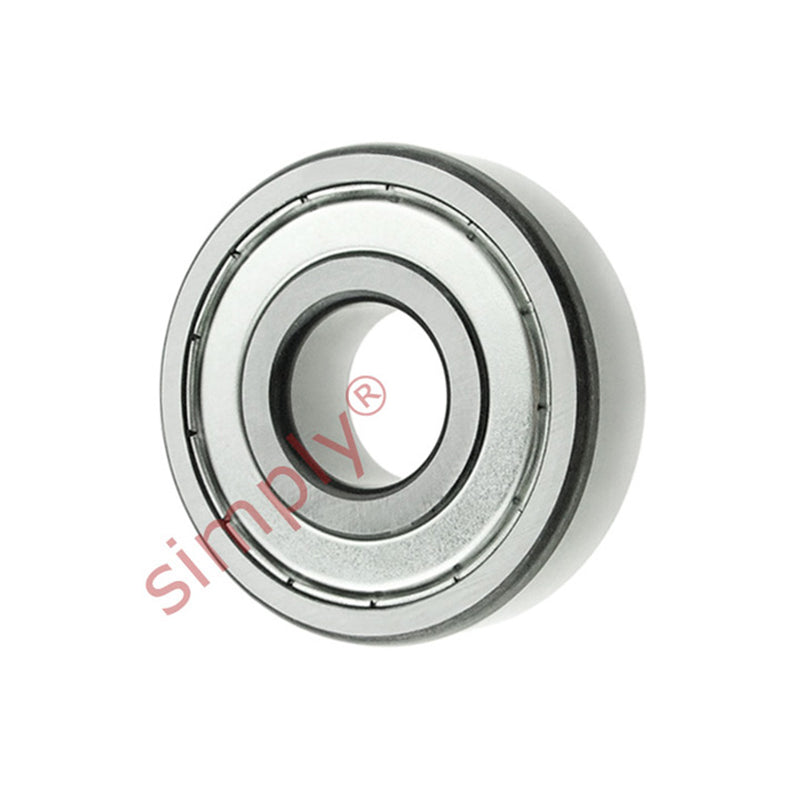

NKE 62092ZC3 Metal Shielded Deep Groove Ball Bearing 45x85x19mm
Equivalent to: 6209ZZEC3 6209ZZC3 6209.2ZC3 6209KDDC3 6209DDC3 62092ZRC3 6209FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 0.915 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.41 kg |
| d1 | 57.6mm |
| D2 | 75.2mm |
| r1r2 min | 1.1mm |
| da min | 52mm |
| Da max | 78mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
