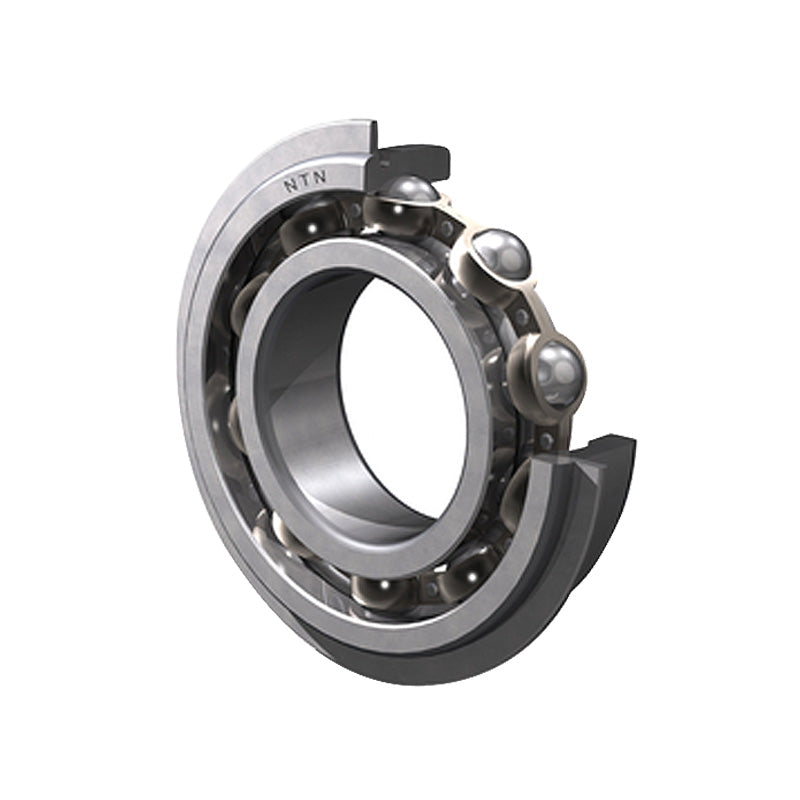

NTN 6208NR Open Type Deep Groove Ball Bearing with Snap Ring 40x80x18mm
NTN 6208NR Open Type Deep Groove Ball Bearing with Snap Ring 40x80x18mm
Regular price
$72.09
ex VAT
Regular price
Sale price
$72.09
ex VAT
Equivalent to: 6208NRCM 208KG 208SG 43208
In stock
Price Break
3+
$34.18
5+
$32.26
10+
$31.88
25+
$31.50
49+
$31.11
74+
$30.73
99+
$28.81
199+
$28.42
249+
$28.04
499+
$27.66
999+
$26.89
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 80mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 32.5 kN |
| C<sub>or</sub> | 17.8 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 14 kN |
| Grease | 8700 rpm |
| Oil | 10000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 76.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 86.6mm |
| f Max. | 1.7mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 46.5mm |
| d<sub>a</sub> Max. | 51mm |
| D<sub>a</sub> Max. | 73.5mm |
| D<sub>X</sub> (approx) | 88mm |
| C<sub>Y</sub> Max. | 4.6mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.366 kg |
