SKU: 6208-2NSE-NACHI

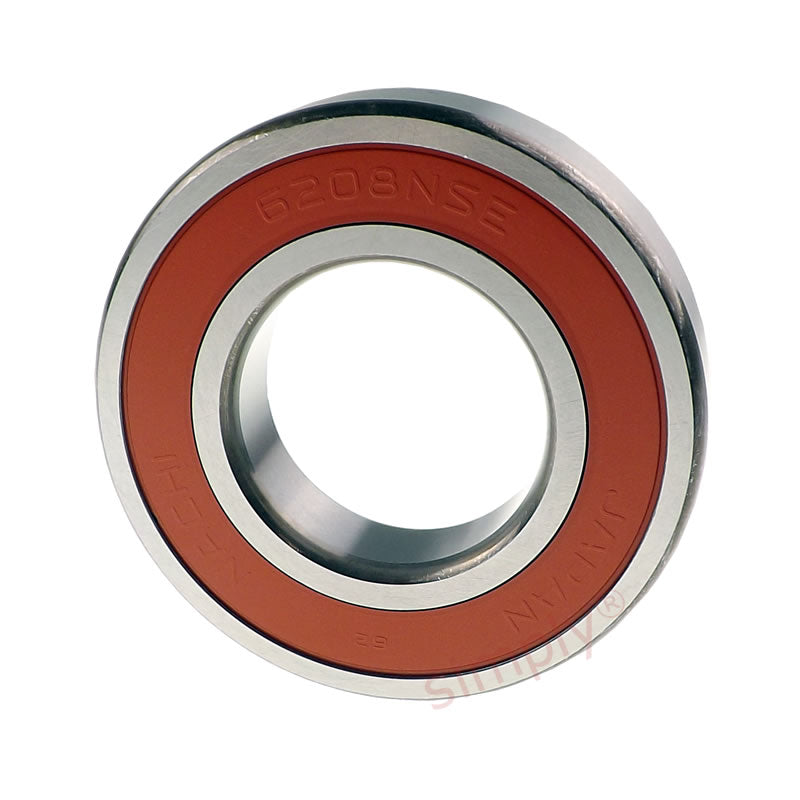

NACHI 62082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x80x18mm
NACHI 62082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x80x18mm
Regular price
$34.59
ex VAT
Regular price
Sale price
$34.59
ex VAT
Equivalent to: 6208NSE 6208DU 6208RS 6208RSH 6208P 6208RSR 6208LU 6208DDU 62082RS 62082RS1 62082RSH 6208PP 62082RSR 62082RSR
In stock
Price Break
5+
$16.40
9+
$15.48
19+
$15.30
29+
$15.11
49+
$14.93
74+
$14.75
99+
$13.82
199+
$13.64
249+
$13.46
499+
$13.27
999+
$12.90
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 80mm |
| Width B | 18mm |
| Min radius r | 1.1mm |
| Dynamic load | 29100 kN |
| Static load | 17900 kN |
| Max speed | 8700 rpm |
| da min | 47mm |
| Da max | 73mm |
| ra max | 1mm |
| Weight | 0.366 kg |
