SKU: 6207ZZC4/5K-NTN

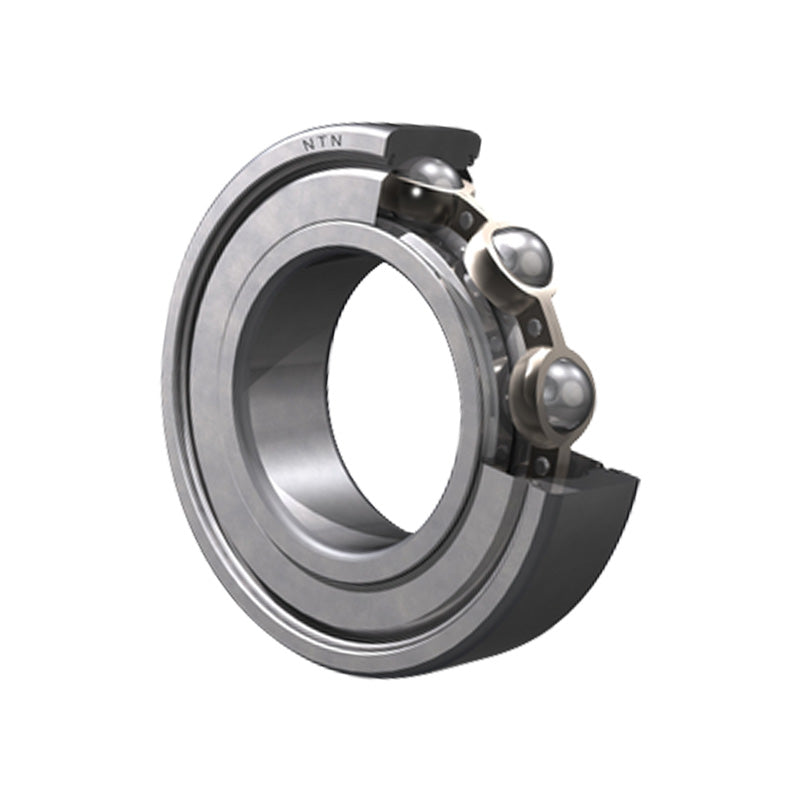

NTN 6207ZZC4/5K Metal Shielded Type Deep Groove Ball Bearing 35x72x17mm
Equivalent to: 6207ZZC4 62072ZC4 6207ZZC4 62072ZRC4 6207ZZEC4 6207FFC4 6207DDC4 6207DDCC4 6207KDDCC4 EL352ZC4 EL35ZZC4 9107KDDC4 9107FFC4 107KSFFC4 773L07C4 6107PPC4
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 72mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 28.4 kN |
| C<sub>or</sub> | 15.3 kN |
| C<sub>u</sub> | 1.09 kN |
| f<sub>0</sub> | 13.8 kN |
| Grease | 9800 rpm |
| Oil | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 41.5mm |
| d<sub>a</sub> Max. | 45mm |
| D<sub>a</sub> Max. | 65.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.288 kg |
