SKU: 6207NRC3-NTN

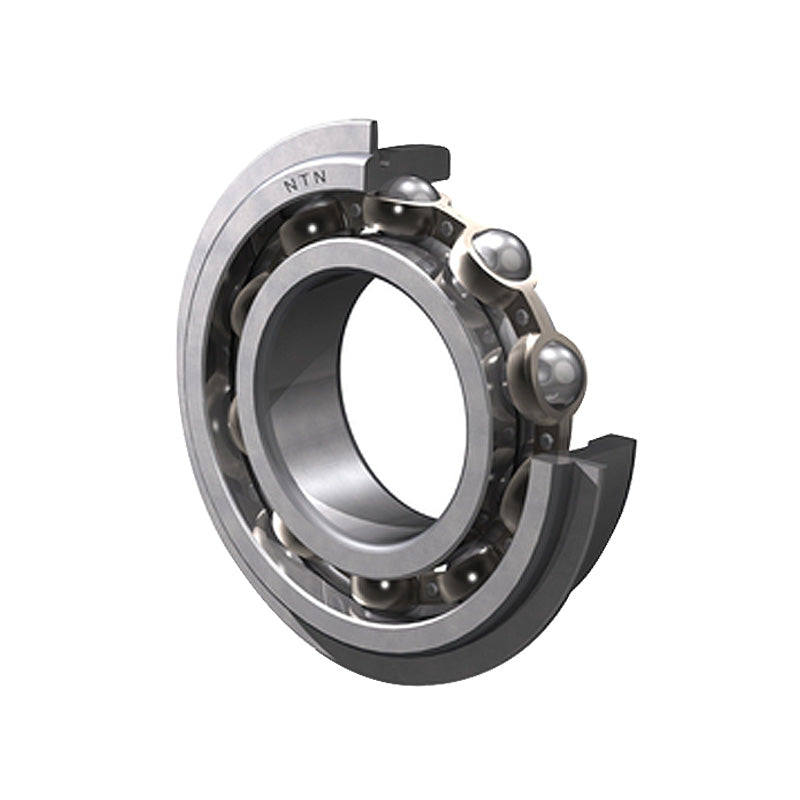

NTN 6207NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
NTN 6207NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
Regular price
$64.83
ex VAT
Regular price
Sale price
$64.83
ex VAT
Equivalent to: 207KGC3 207SGC3 43207C3
In stock
Price Break
3+
$30.74
5+
$29.01
10+
$28.67
25+
$28.32
49+
$27.98
74+
$27.63
99+
$25.91
199+
$25.56
249+
$25.21
499+
$24.87
999+
$24.18
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 72mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 28.4 kN |
| C<sub>or</sub> | 15.3 kN |
| C<sub>u</sub> | 1.09 kN |
| f<sub>0</sub> | 13.8 kN |
| Grease | 9800 rpm |
| Oil | 11000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 68.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 78.6mm |
| f Max. | 1.7mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 41.5mm |
| d<sub>a</sub> Max. | 45mm |
| D<sub>a</sub> Max. | 65.5mm |
| D<sub>X</sub> (approx) | 80mm |
| C<sub>Y</sub> Max. | 4.6mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.288 kg |
