SKU: 6207ETN9-SKF

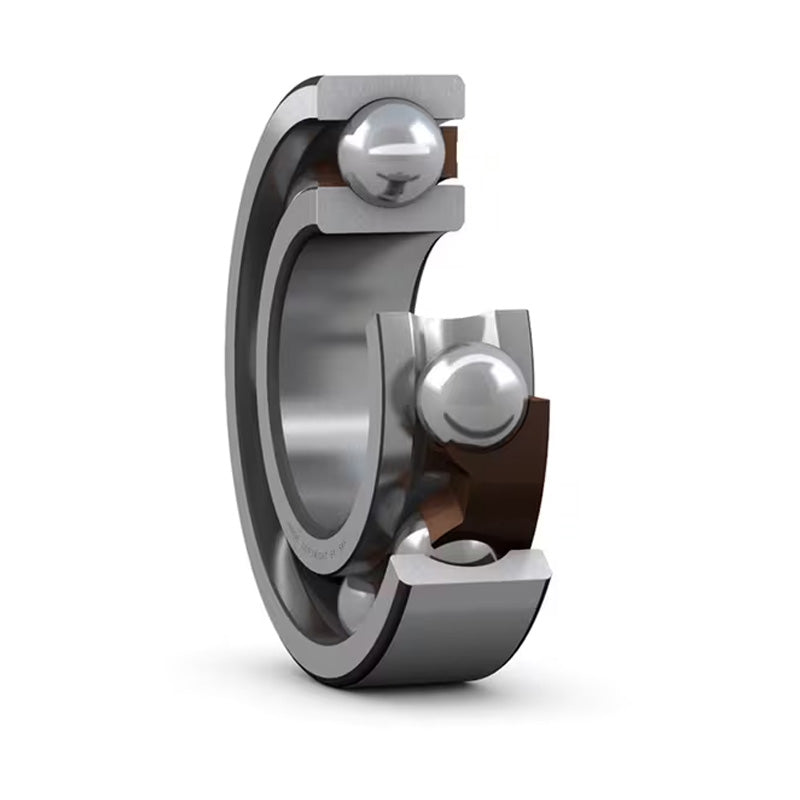

SKF 6207ETN9 Open Deep Groove Ball Bearing with Fibre Cage 35x72x17mm
SKF 6207ETN9 Open Deep Groove Ball Bearing with Fibre Cage 35x72x17mm
Out of stock
Share this product
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dynamic load | 31.2 kN |
| Static load | 17.6 kN |
| Fatigue load limit Pu | 0.75 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.27 kg |
| d1 | 46.1mm |
| D1 | 61.7mm |
| D2 | n/amm |
| r1r2 min | 1.1mm |
| da min | 42mm |
| Da max | 65mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 13 |
