SKU: 6205ZZC3/5K-NTN

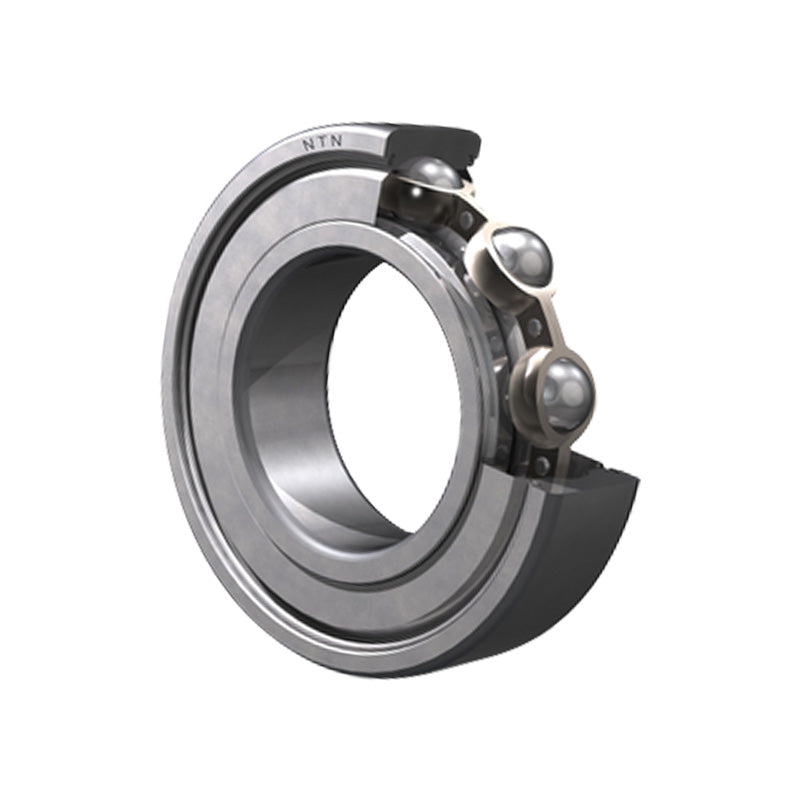

NTN 6205ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 25x52x15mm
Equivalent to: 6205ZZC3 62052ZC3 6205ZZC3 62052ZRC3 6205ZZEC3 6205FFC3 6205DDC3 6205DDCC3 6205KDDCC3 EL252ZC3 EL25ZZC3 9105KDDC3 9105FFC3 105KSFFC3 773L05C3 6105PPC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15.5 kN |
| C<sub>or</sub> | 7.85 kN |
| C<sub>u</sub> | 0.55 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 30mm |
| d<sub>a</sub> Max. | 32mm |
| D<sub>a</sub> Max. | 47mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.128 kg |
