SKU: 6205ZZ/5K-NTN

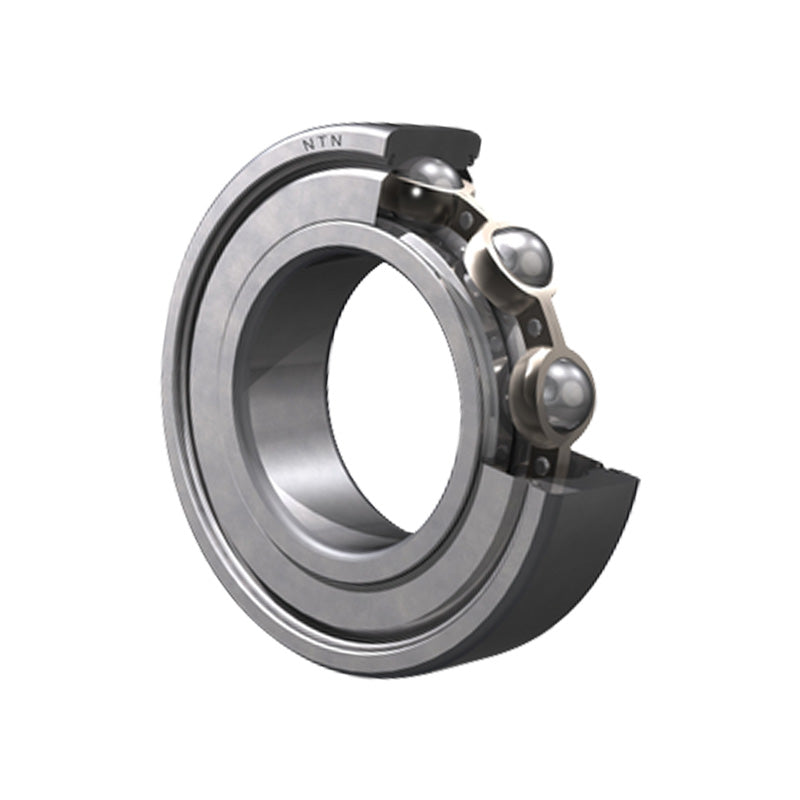

NTN 6205ZZ/5K Metal Shielded Type Deep Groove Ball Bearing 25x52x15mm
Equivalent to: 6205ZZCM 6205ZZ 6205ZZ 62052Z 6205ZZ 62052ZR 6205ZZE 6205FF 6205DD 6205DDC 6205KDDC EL252Z EL25ZZ 9105KDD 9105FF 105KSFF 773L05 6105PP
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15.5 kN |
| C<sub>or</sub> | 7.85 kN |
| C<sub>u</sub> | 0.55 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 30mm |
| d<sub>a</sub> Max. | 32mm |
| D<sub>a</sub> Max. | 47mm |
| r<sub>as</sub> Max. | 0.129mm |
| Weight | 0.129 kg |
