SKU: 6205-2RSH-NR-C3-FAG

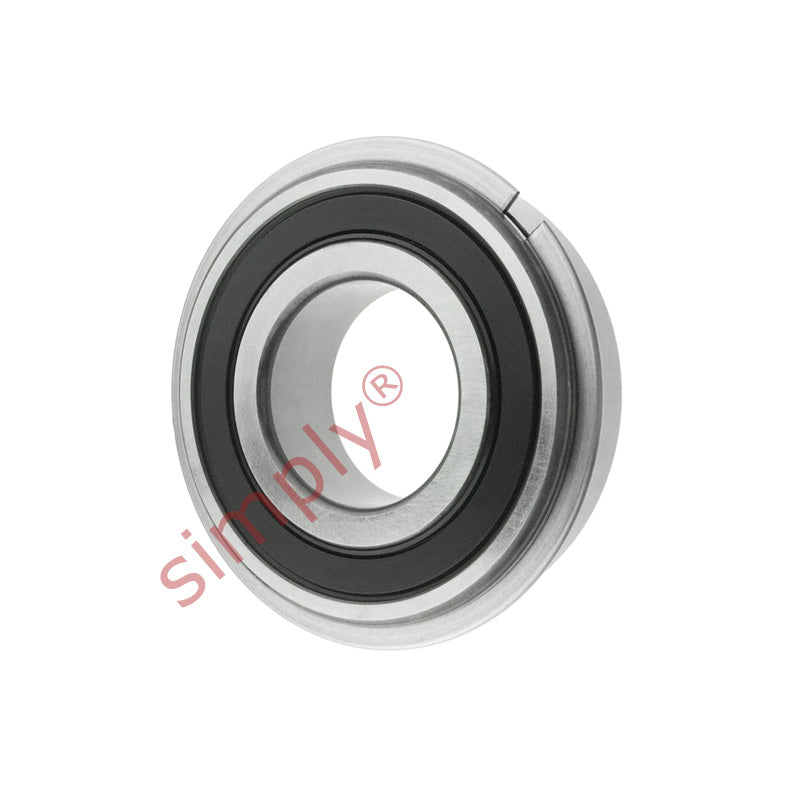

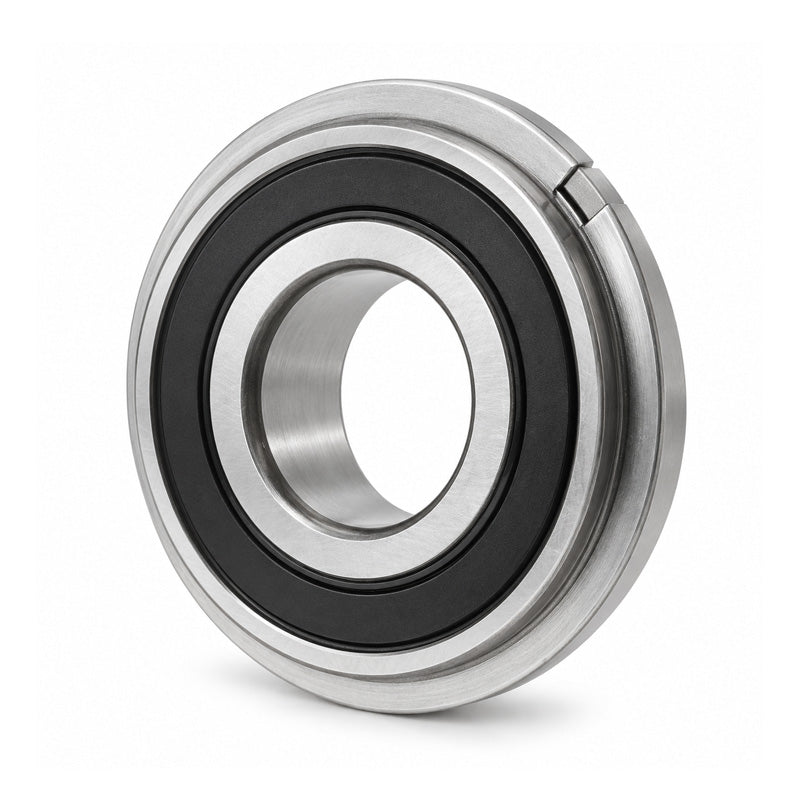

FAG 62052RSNR/C3 Rubber Sealed Snap Ring Deep Groove Ball Bearing 25x52x15mm
Out of stock
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 14.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 8500 rpm |
| Mass | 0.13 kg |
| d2 | 31.8mm |
| D2 | 46.3mm |
| r1r2 min | 1mm |
| da min | 30.6 |
