• KOYO 6203C3 Open Deep Groove Ball Bearing 17x40x12mm
  • Koyo
1 2

SKU: 6203/C3-KOY

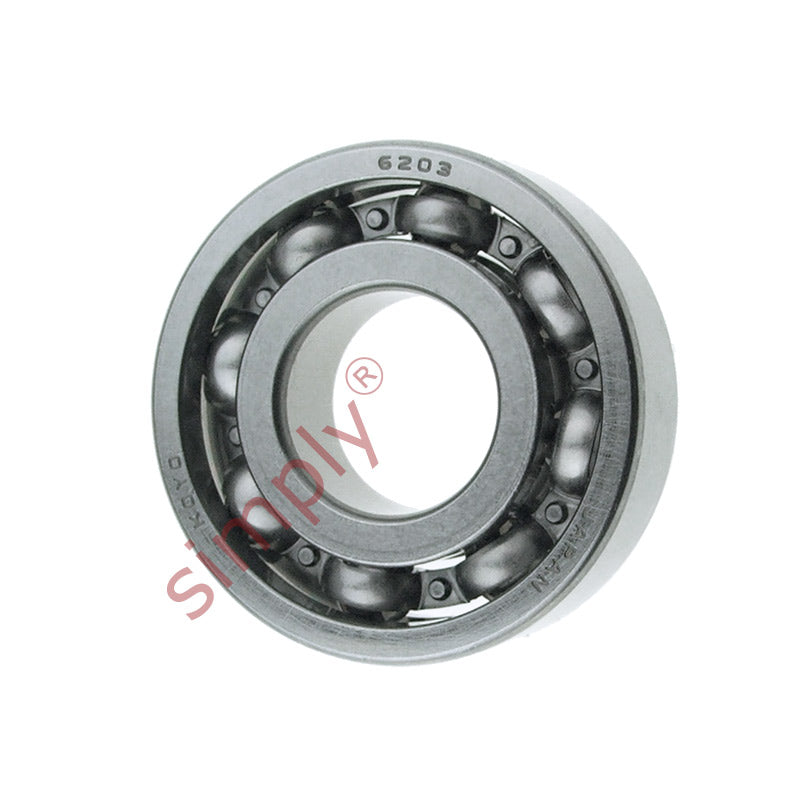

KOYO 6203C3 Open Deep Groove Ball Bearing 17x40x12mm

KOYO 6203C3 Open Deep Groove Ball Bearing 17x40x12mm
$9.05 ex VAT
$9.05 ex VAT
Sale Sold out

In stock

Price Break
5+ $4.29
9+ $4.05
19+ $4.00
29+ $3.95
49+ $3.90
74+ $3.86
99+ $3.62
199+ $3.57
249+ $3.52
499+ $3.47
999+ $3.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KOYO Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
Koyo - High Quality
Inside Diameter:
17mm
Outside Diameter:
40mm
Width:
12mm
Seals / Shields:
None
Clearance:
C3
Technical
Inside Diameter d 17mm
Outside Diameter D 40mm
Width B 12mm
Min radius r 0.6mm
Dynamic load 9.55 kN
Static load 4.8 kN
Max speed in oil 21000 rpm
Max speed in grease 12000 rpm
