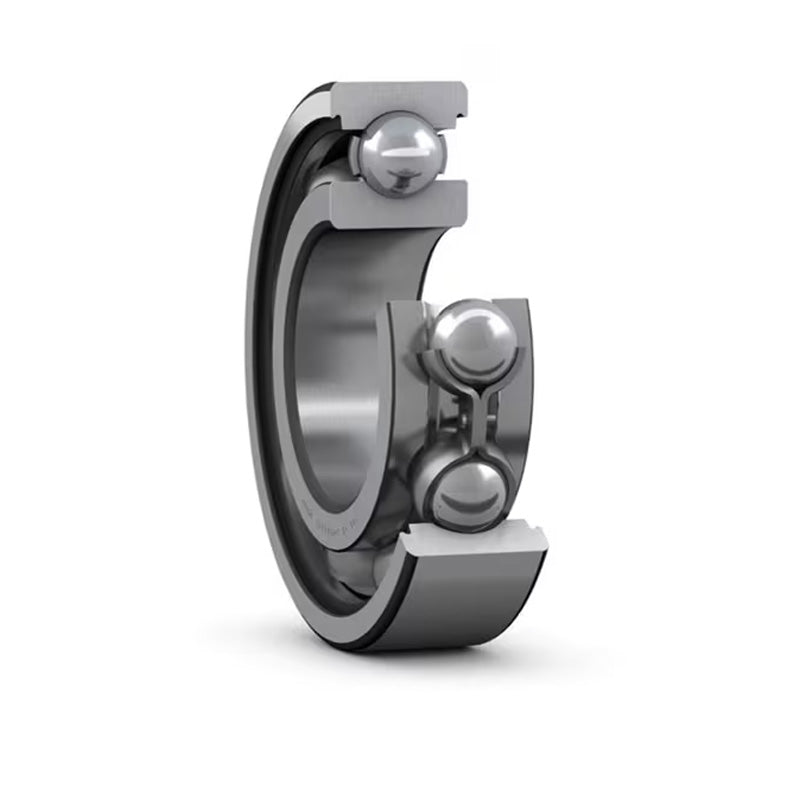

• SKF 6202TN9 Open Deep Groove Ball Bearing 15x35x11mm
1 1

SKU: 6202TN9-SKF

SKF 6202TN9 Open Deep Groove Ball Bearing 15x35x11mm

SKF 6202TN9 Open Deep Groove Ball Bearing 15x35x11mm
$55.76 ex VAT
$55.76 ex VAT
Sale Sold out

In stock

Price Break
4+ $26.44
10+ $24.96
20+ $24.66
30+ $24.36
50+ $24.07
75+ $23.77
100+ $22.28
200+ $21.99
250+ $21.69
500+ $21.39
1000+ $20.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
15mm
Outside Diameter:
35mm
Width:
11mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 15mm
D 35mm
B 11mm
Dynamic load 8.06 kN
Static load 3.75 kN
Reference speed 43000 rpm
Limiting speed 28000 rpm
Weight 0.004 kg
D1 n/a mm
D2 30.5mm
ra max 0.6mm
Calculation factor kr 0.025
Calculation factor Cor 13
