SKU: 6202-2RSH/C3-EU

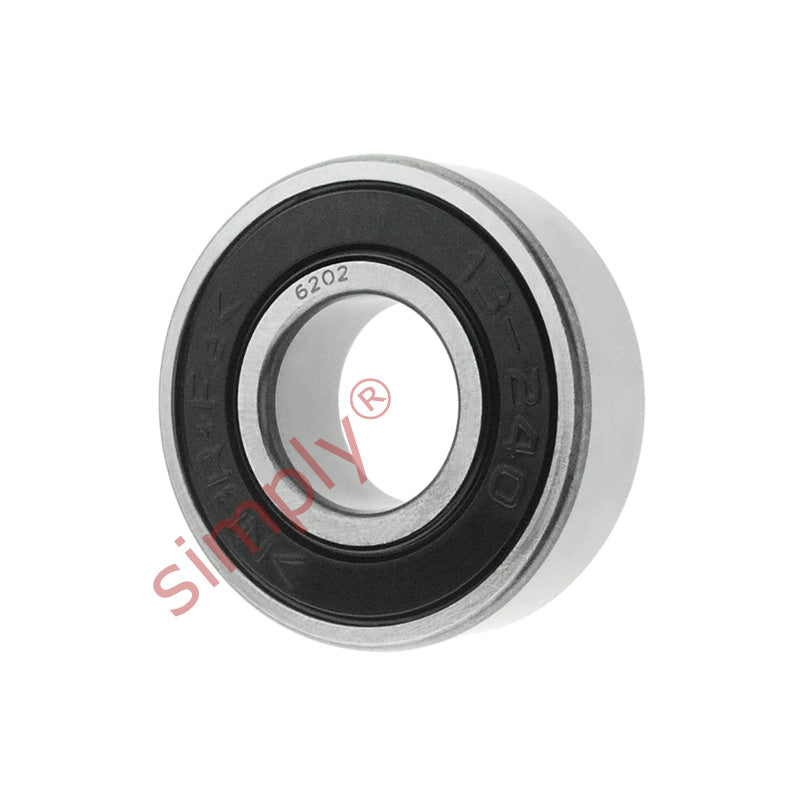

62022RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 15x35x11mm
Equivalent to: 6202NSEC3 6202DUC3 6202RSHC3 6202PC3 6202RSRC3 6202LUC3 62022NSEC3 6202DDUC3 6202PPC3 62022RSRC3 6202LLUC3 62022RSC3 6202RS2C3 62022RS2C3 62022RS1C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| r min | 0.6mm |
| Dynamic load Cr | 7.65 kN |
| Static load Cor | 3.75 kN |
| Speed in grease | 20000 rpm |
| Speed in oil | 24000 rpm |
