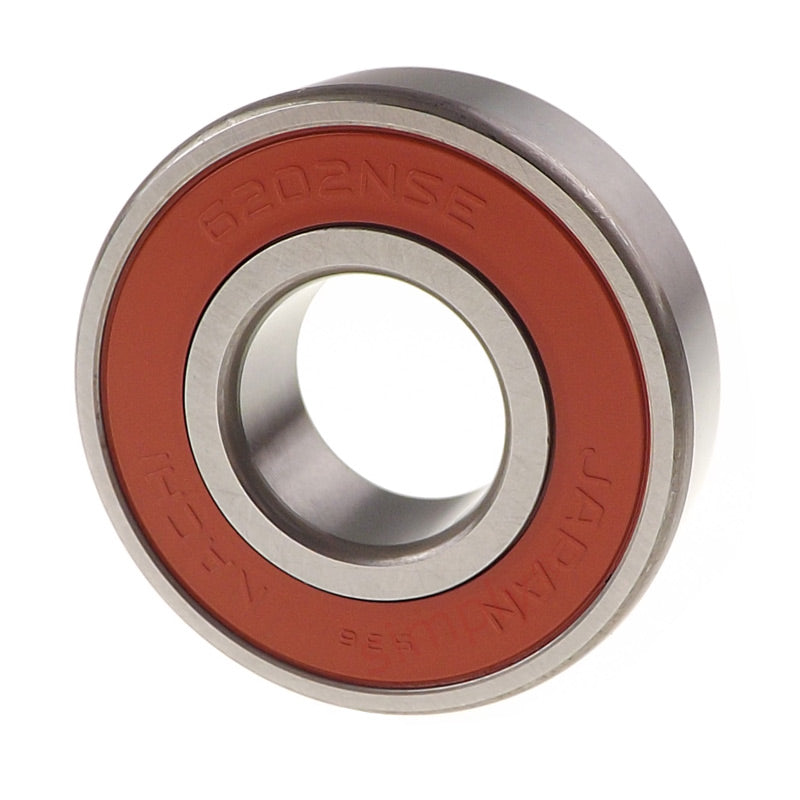

NACHI 62022NSE Contact Rubber Sealed Deep Groove Ball Bearing 15x35x11mm
NACHI 62022NSE Contact Rubber Sealed Deep Groove Ball Bearing 15x35x11mm
Regular price
$9.87
ex VAT
Regular price
Sale price
$9.87
ex VAT
Equivalent to: 6202NSE 6202DU 6202RS 6202RSH 6202P 6202RSR 6202LU 6202DDU 62022RS 62022RS1 62022RSH 6202PP 62022RSR 62022RSR
In stock
Price Break
5+
$4.68
9+
$4.42
19+
$4.37
29+
$4.32
49+
$4.26
74+
$4.21
99+
$3.95
199+
$3.90
249+
$3.84
499+
$3.79
999+
$3.68
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 11mm |
| Min radius r | 0.6mm |
| Dynamic load | 7650 kN |
| Static load | 3700 kN |
| Max speed | 20000 rpm |
| da min | 20mm |
| Da max | 30mm |
| ra max | 0.6mm |
| Weight | 0.045 kg |
