SKU: 6200ZZNR/5K-NTN

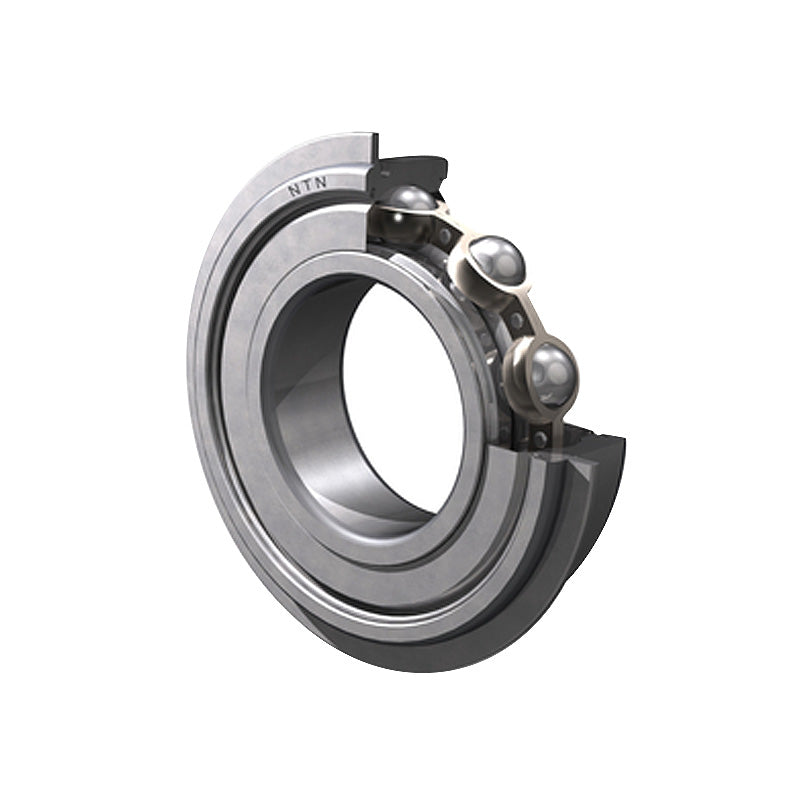

NTN 6200ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 10x30x9mm
Equivalent to: 6200ZZNRCM 6200ZZNR 6200ZZNR 62002ZNR 6200ZZNR 62002ZRNR 6200ZZENR 6200FFNR 6200DDNR 6200DDCNR 6200KDDCNR EL102ZNR EL10ZZNR 9100KDDG 4773L00 100KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 30mm |
| B | 9mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 5.65 kN |
| C<sub>or</sub> | 2.39 kN |
| C<sub>u</sub> | 0.182 kN |
| f<sub>0</sub> | 13.2 rpm |
| Grease | 25000 rpm |
| --- | Fitting Dimensions |
| Oil | 30000 rpm |
| D<sub>1</sub> Max. | 28.17mm |
| a Max. | 2.06mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
