SKU: 6200NR-NTN

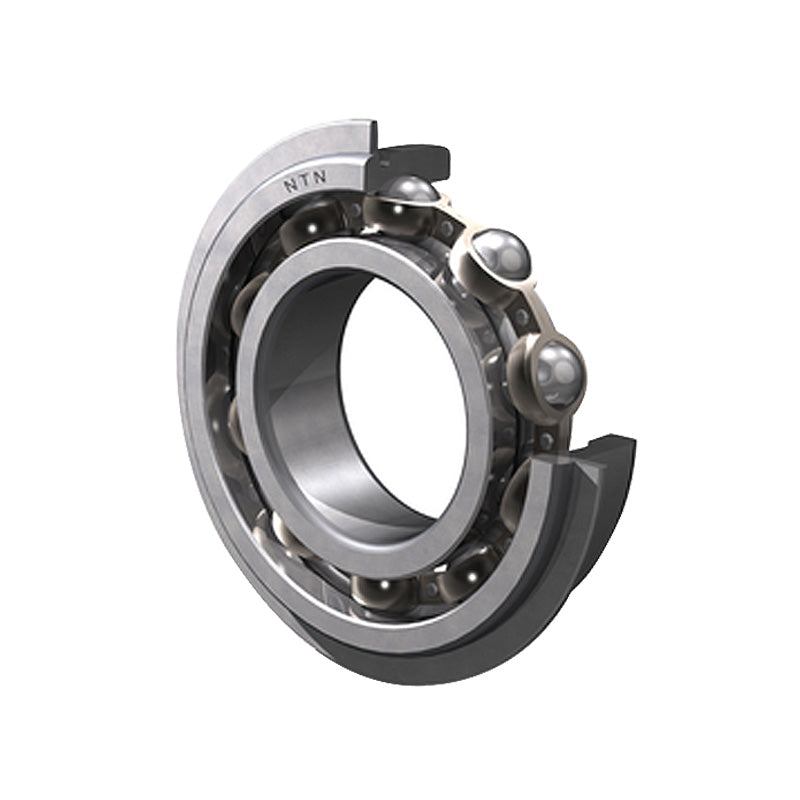

NTN 6200NR Open Type Deep Groove Ball Bearing with Snap Ring 10x30x9mm
NTN 6200NR Open Type Deep Groove Ball Bearing with Snap Ring 10x30x9mm
Regular price
$12.48
ex VAT
Regular price
Sale price
$12.48
ex VAT
Equivalent to: 6200NRCM 200KG 200SG 43200
In stock
Price Break
3+
$5.92
5+
$5.59
10+
$5.52
25+
$5.45
49+
$5.39
74+
$5.32
99+
$4.99
199+
$4.92
249+
$4.85
499+
$4.79
999+
$4.66
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 30mm |
| B | 9mm |
| r<sub>s</sub> min | 0.6mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 5.65 kN |
| C<sub>or</sub> | 2.39 kN |
| C<sub>u</sub> | 0.182 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 25000 rpm |
| Oil | 30000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 28.17mm |
| a Max. | 2.06mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 34.7mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| d<sub>a</sub> Max. | 16mm |
| D<sub>a</sub> Max. | 26mm |
| D<sub>X</sub> (approx) | 35.5mm |
| C<sub>Y</sub> Max. | 2.9mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 0.6mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.032 kg |
