SKU: 62/32LLU/5K-NTN

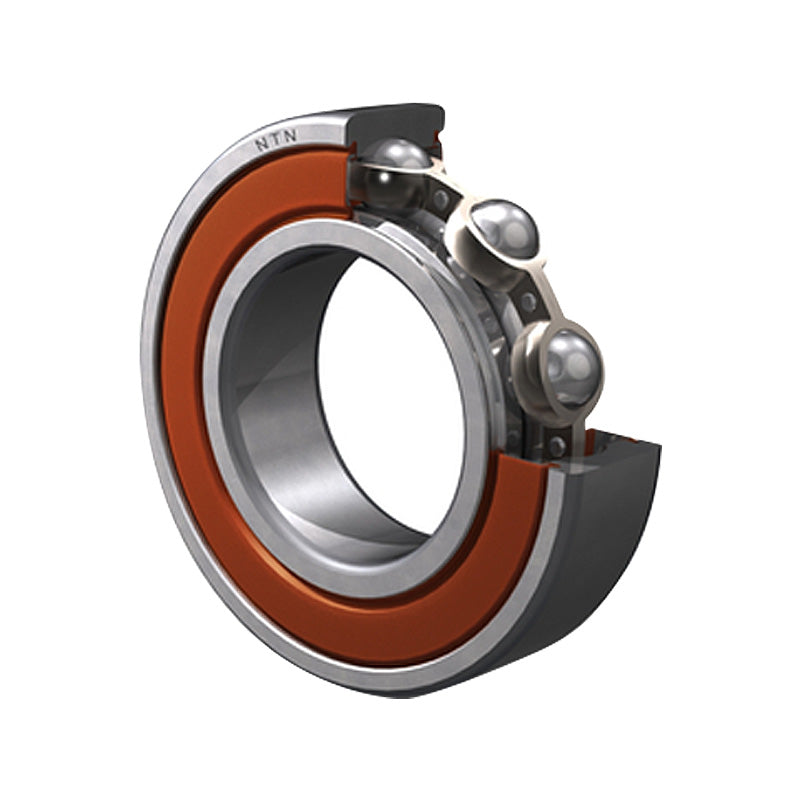

NTN 62/32LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 32x65x17mm
Equivalent to: 62/32LLUCM 62/32LLU 62/32NSE 62/32DU 62/32RS 62/32RSH 62/32P 62/32RSR 62/32LU 62/322NSE 62/32DDU 62/322RS 62/32-2RS 62/322RS1 62/322RSH 62/32PP 62/322RSR 62/32LLU 62/32RS2 62/322RS2 62/322RSL 62/32LFS 62/32EE
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 65mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 32mm |
| D | 65mm |
| B | 17mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 23 kN |
| C<sub>or</sub> | 11.6 kN |
| C<sub>u</sub> | 0.84 kN |
| f<sub>0</sub> | 13.6 kN |
| Speed | 7100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 37mm |
| d<sub>a</sub> Max. | 40mm |
| D<sub>a</sub> Max. | 60mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.226 kg |
