SKU: 61996-MA-FAG

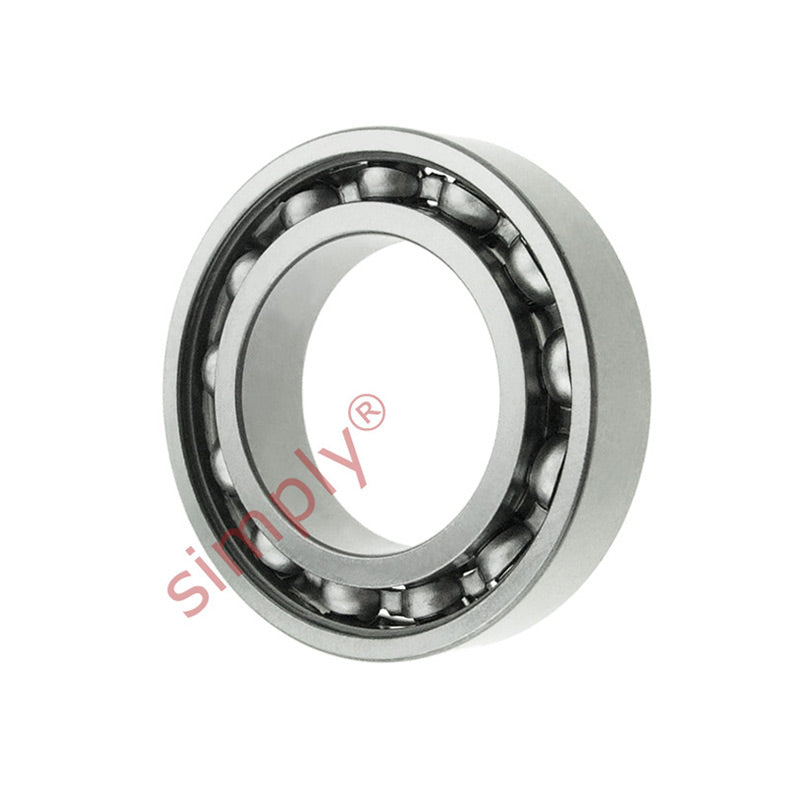

FAG 61996MA Open Thin Section Deep Groove Ball Bearing 480x650x78mm
FAG 61996MA Open Thin Section Deep Groove Ball Bearing 480x650x78mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 480mm
- Outside Diameter:
- 650mm
- Width:
- 78mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 480mm |
|---|---|
| D | 650mm |
| B | 78mm |
| Dynamic load C | 449 kN |
| Static load Co | 815 kN |
| Fatigue load limit Pu | 14.6 kN |
| Reference speed | 1800 rpm |
| Limiting speed | 1500 rpm |
| Mass | 74 kg |
| d1 | 535mm |
| D1 | 595mm |
| D2 | 5mm |
| r1r2 min | 498mm |
| da min | 632mm |
| Da max | 4mm |
| ra max | 0.02mm |
| Calc factor Kr | 17 |
| Calc factor | N/A |
