SKU: 61980-MA-FAG

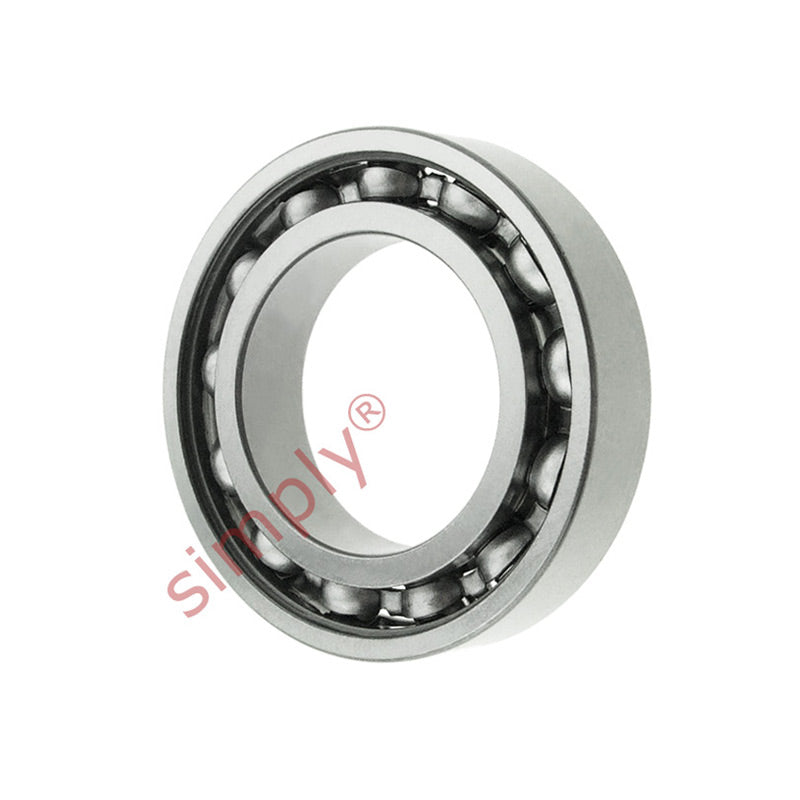

FAG 61980MA Open Thin Section Deep Groove Ball Bearing 400x540x65mm
FAG 61980MA Open Thin Section Deep Groove Ball Bearing 400x540x65mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 400mm
- Outside Diameter:
- 540mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 400mm |
|---|---|
| D | 540mm |
| B | 65mm |
| Dynamic load C | 345 kN |
| Static load Co | 570 kN |
| Fatigue load limit Pu | 11.2 kN |
| Reference speed | 2200 rpm |
| Limiting speed | 1800 rpm |
| Mass | 41.5 kg |
| d1 | 445mm |
| D1 | 495mm |
| D2 | 4mm |
| r1r2 min | 415mm |
| da min | 525mm |
| Da max | 3mm |
| ra max | 0.02mm |
| Calc factor Kr | 17 |
| Calc factor | N/A |
