SKU: 61919-2Z-EU

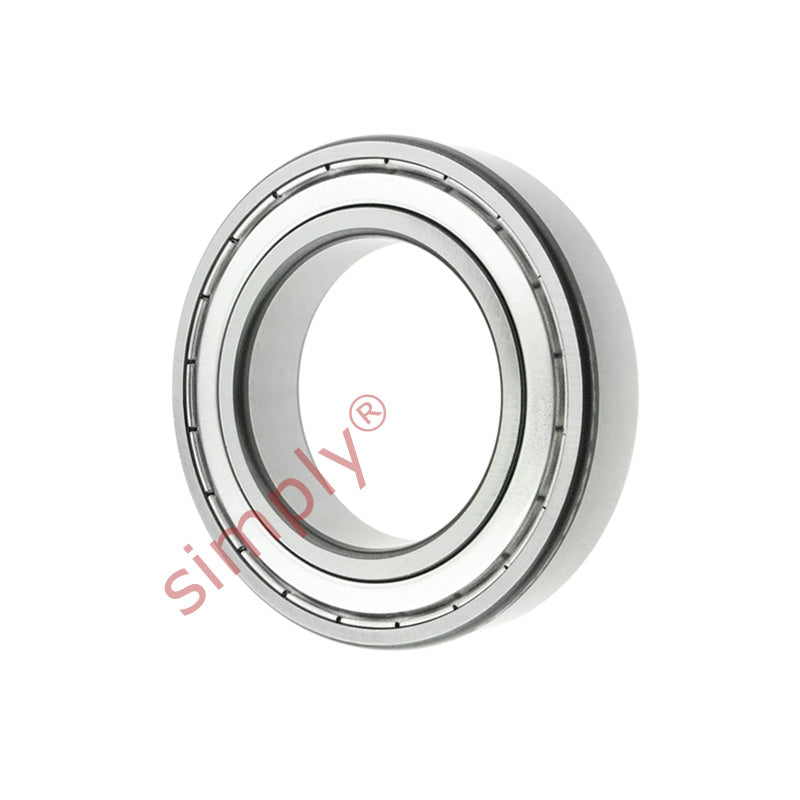

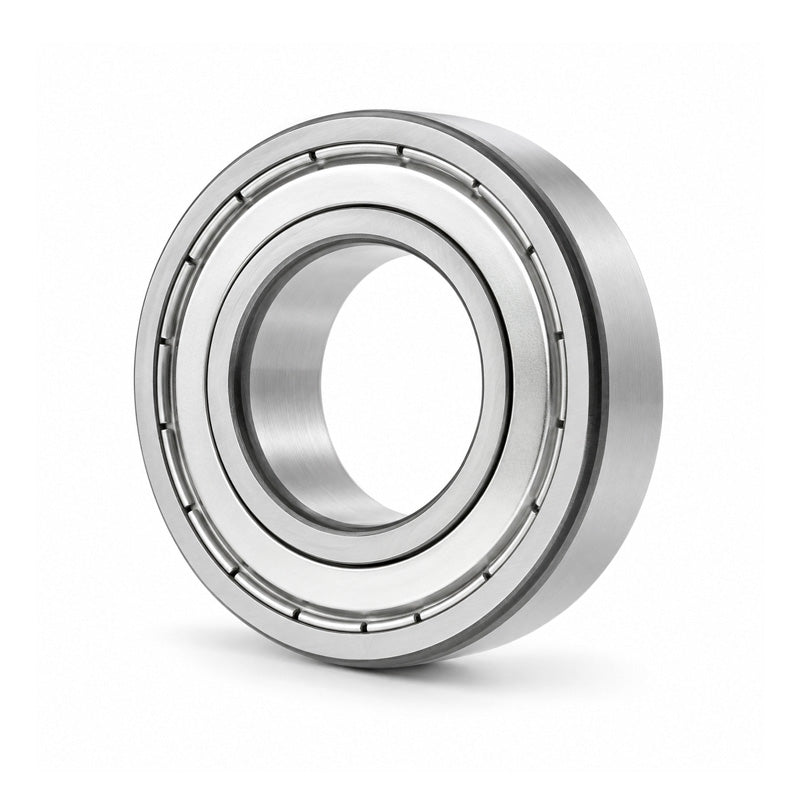

6919ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 95x130x18mm
Equivalent to: 61919ZZE 61919ZZ 61919.2Z 61919KDD 61919DD 61919FF 6919ZZE 6919ZZ 69192Z 6919.2Z 6919KDD 6919DD 69192ZR 6919FF 619192ZR 61919ZZE 61919ZZ 619192ZR 619192RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 130mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 95mm |
|---|---|
| D | 130mm |
| B | 18mm |
| r min | 1.1mm |
| Dynamic load Cr | 33.7 kN |
| Static load Cor | 33.5 kN |
| Speed in grease | 4800 rpm |
| Speed in oil | 5700 rpm |
