SKU: 61919-2RSR-FAG

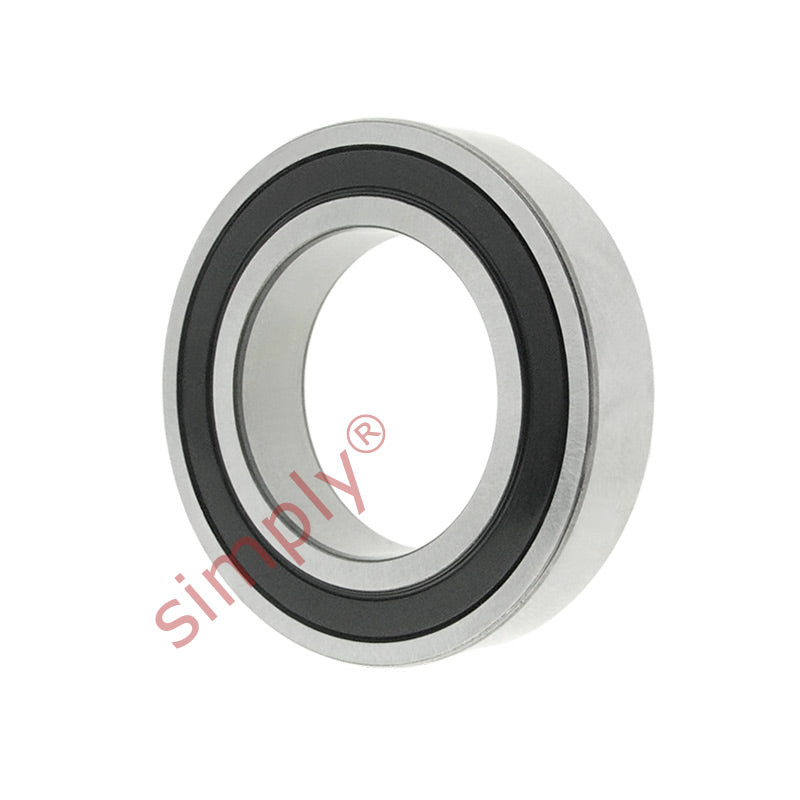

FAG 619192RSR Rubber Sealed Thin Deep Groove Ball Bearing 95x130x18mm - Allow 2-3 Days
Equivalent to: 61919NSE 61919DU 61919RS 61919RSH 61919P 61919RSR 61919LU 6919NSE 6919DU 6919RS 6919RSH 6919P 6919RSR 6919LU 619192NSE 61919DDU 619192RS 619192RS1 619192RSH 61919PP 61919LLU 69192NSE 6919DDU 69192RS 69192RS1 69192RSH 6919PP 69192RSR 6919LLU
Out of stock
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 130mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 95mm |
|---|---|
| D | 130mm |
| B | 18mm |
| Dynamic load C | 33.8 kN |
| Static load Co | 33.5 kN |
| Fatigue load limit Pu | 1.43 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 3000 rpm |
| Mass | 0.61 kg |
| d1 | 106mm |
| D2 | 122mm |
| r1r2 min | 1.1mm |
| da min | 101 |
