SKU: 61918-2Z-EU

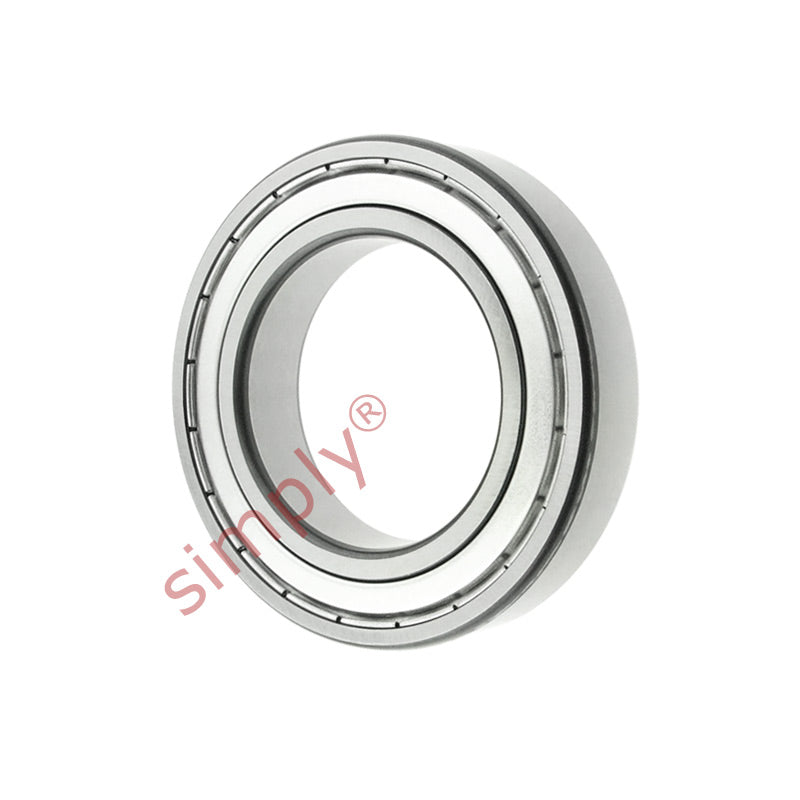

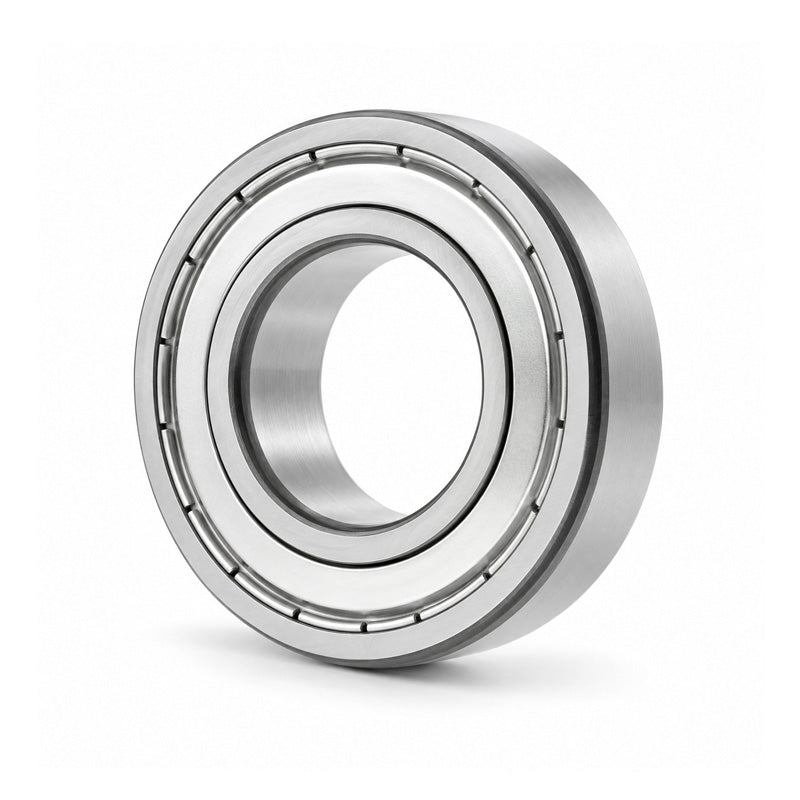

6918ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 90x125x18mm
Equivalent to: 61918ZZE 61918ZZ 61918.2Z 61918KDD 61918DD 61918FF 6918ZZE 6918ZZ 69182Z 6918.2Z 6918KDD 6918DD 69182ZR 6918FF 619182ZR 61918ZZE 61918ZZ 619182ZR 619182RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 125mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 90mm |
|---|---|
| D | 125mm |
| B | 18mm |
| r min | 1.1mm |
| Dynamic load Cr | 32.8 kN |
| Static load Cor | 31.6 kN |
| Speed in grease | 5100 rpm |
| Speed in oil | 6000 rpm |
