SKU: 61906-2RS1/C3-SKF

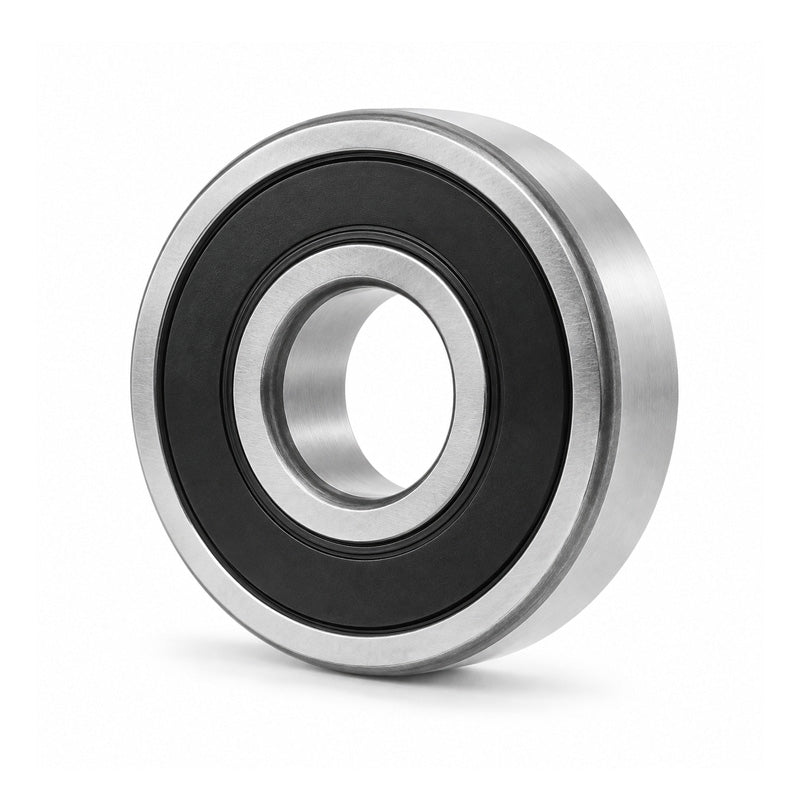

SKF 619062RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 30x47x9mm
Equivalent to: 61906NSEC3 61906DUC3 61906RSC3 61906RSHC3 61906PC3 61906RSRC3 61906LUC3 6906NSEC3 6906DUC3 6906RSC3 6906RSHC3 6906PC3 6906RSRC3 6906LUC3 619062NSEC3 61906DDUC3 619062RSC3 619062RSHC3 61906PPC3 619062RSRC3 61906LLU 69062NSEC3 6906DDUC3 69062RSC3 69062RS1C3 69062RSHC3 6906PPC3 69062RSRC3 6906LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 9mm |
| Dynamic load C | 7.28 kN |
| Static load Co | 4.55 kN |
| Fatigue load limit Pu | 0.212 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.051 kg |
| d2 | 34.2mm |
| D2 | 42.8mm |
| r1r2 min | 0.3mm |
| da min | 32mm |
| da max | 34mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 14 |
