SKU: 61902-2Z-EU

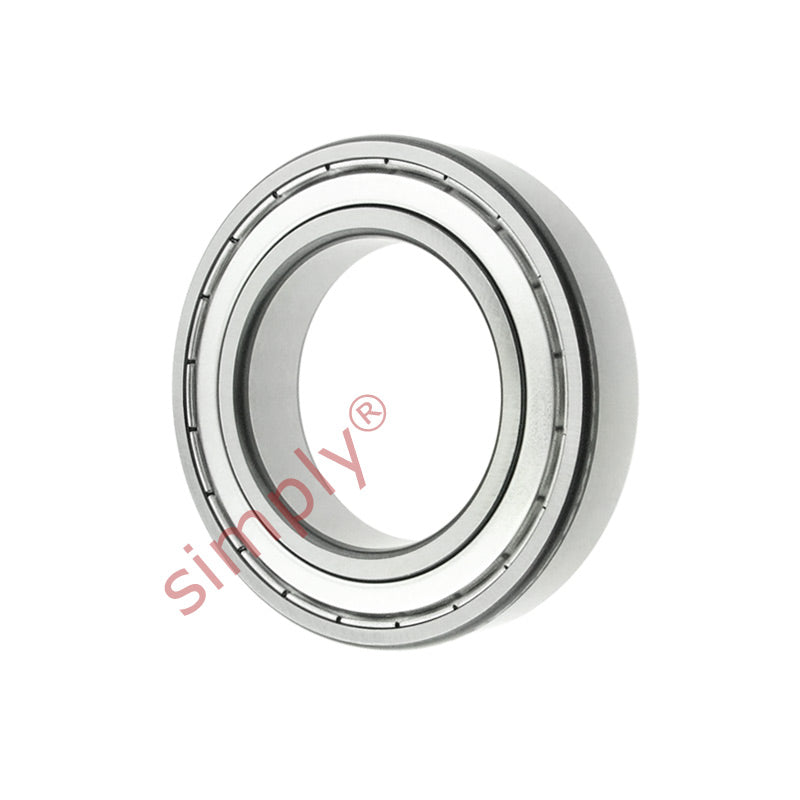

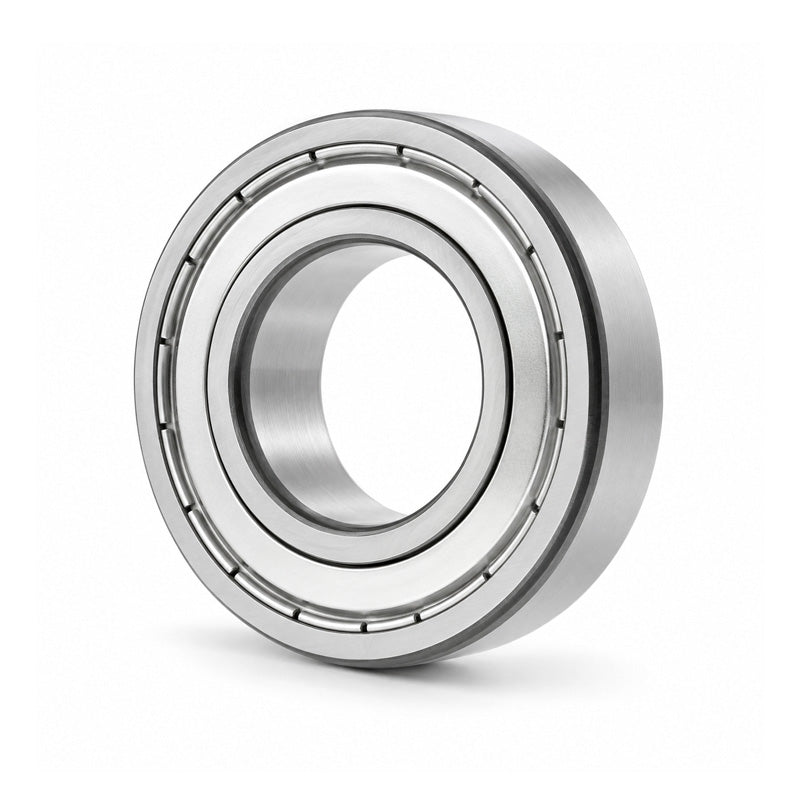

6902ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 15x28x7mm
Equivalent to: 61902ZZE 61902ZZ 61902.2Z 61902KDD 61902DD 61902FF 6902ZZE 6902ZZ 69022Z 6902.2Z 6902KDD 6902DD 69022ZR 6902FF 619022ZR 61902ZZE 61902ZZ 619022ZR 619022RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4.3 kN |
| Static load Cor | 2.25 kN |
| Speed in grease | 26000 rpm |
| Speed in oil | 30000 rpm |
