SKU: 61900-ZZ-CDX

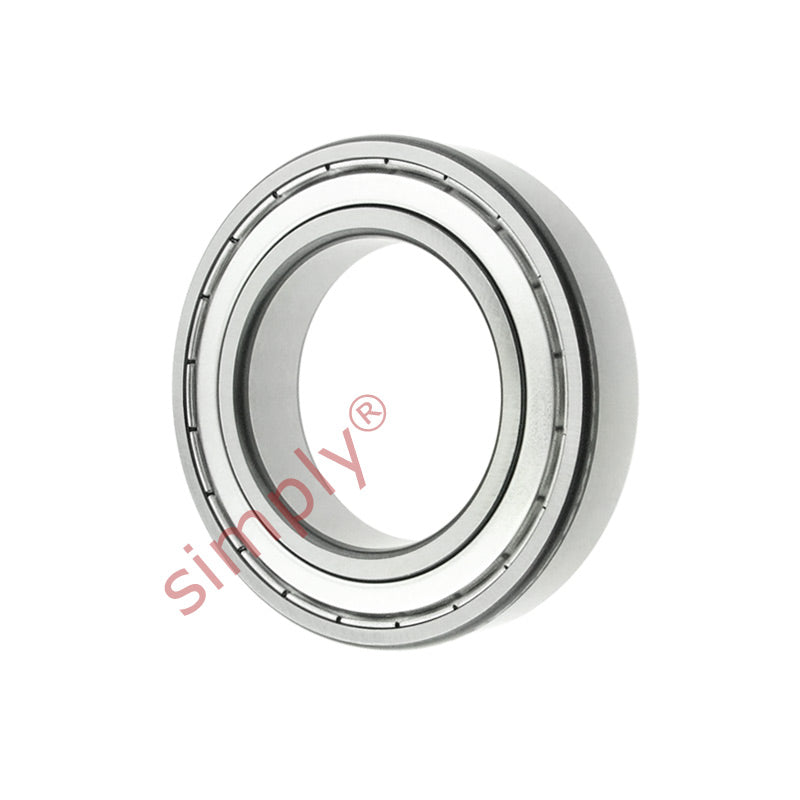

Codex 61900ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 10x22x6mm
Equivalent to: 61900ZZ 619002Z 619002ZR 61900ZZE 61900FF 61900DD 61900DDC 61900KDDC EL10ZZ EL102Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 6mm |
| Dynamic Load | 2.08 kN |
| Static Load | 0.85 kN |
| Fatigue Load Limit Pu | 0.036 |
| Reference Speed | 75000 rpm |
| Limiting Speed | 36000 rpm |
| Weight | 0.01kg |
| d2 | 12mm |
| D2 | 19mm |
| r1r2 min | 0.3mm |
| da min | 12mm |
| da max | 12mm |
| Da max | 20mm |
| ra max | 0.3 |
| Calc factor kr | 0.02 |
| Calc factor Cor f0 | 9.3 |
