SKU: 61824-2Z-EU

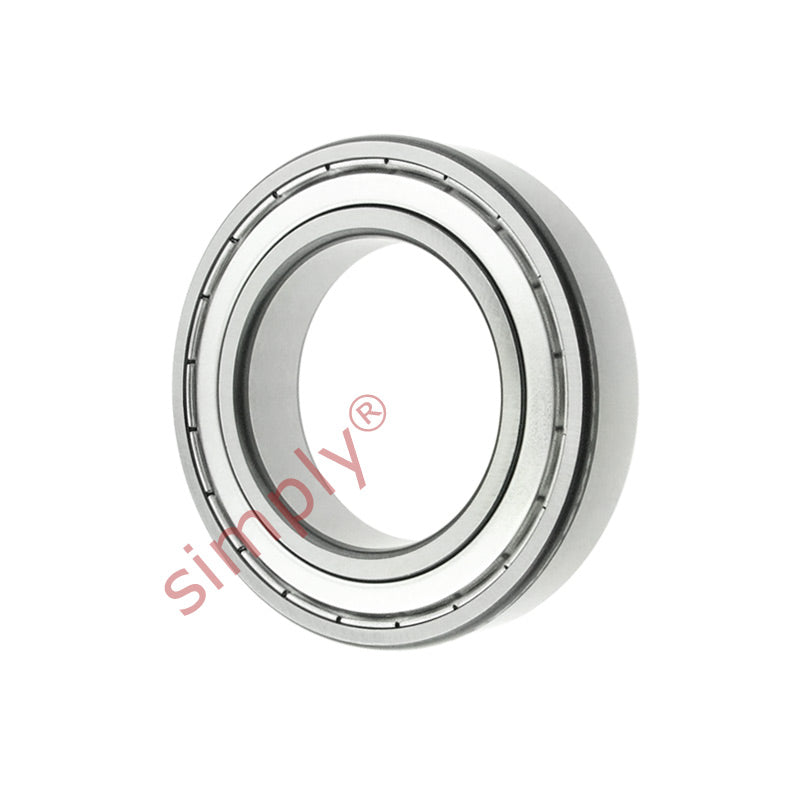

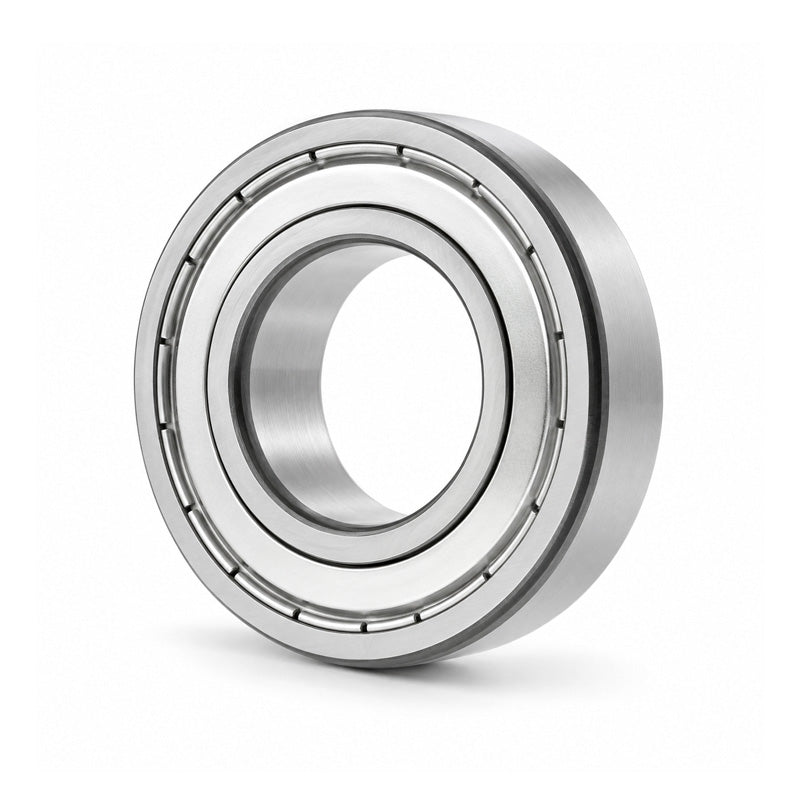

6824ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 120x150x16mm
Equivalent to: 61824ZZE 61824ZZ 61824.2Z 61824KDD 61824DD 61824FF 6824ZZE 6824ZZ 68242Z 6824.2Z 6824KDD 6824DD 68242ZR 6824FF 618242ZR 61824ZZE 61824ZZ 618242ZR 618242RS2
In stock
Price Break
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 150mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 120mm |
|---|---|
| D | 150mm |
| B | 16mm |
| r min | 1mm |
| Dynamic load Cr | 29 kN |
| Static load Cor | 33 kN |
| Speed in grease | 4000 rpm |
| Speed in oil | 4700 rpm |
