SKU: 61821-2RS1/C3-SKF

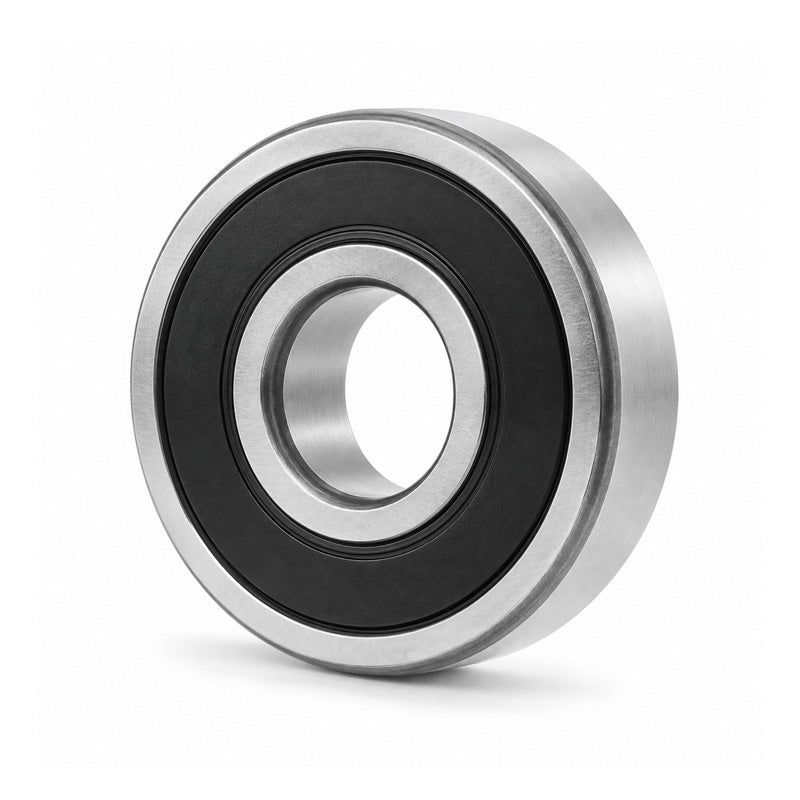

SKF 618212RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 105x130x13mm
Equivalent to: 61821NSEC3 61821DUC3 61821RSC3 61821RSHC3 61821PC3 61821RSRC3 61821LUC3 6821NSEC3 6821DUC3 6821RSC3 6821RSHC3 6821PC3 6821RSRC3 6821LUC3 618212NSEC3 61821DDUC3 618212RSC3 618212RSHC3 61821PPC3 618212RSRC3 61821LLU 68212NSEC3 6821DDUC3 68212RSC3 68212RS1C3 68212RSHC3 6821PPC3 68212RSRC3 6821LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 130mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 105mm |
|---|---|
| D | 130mm |
| B | 13mm |
| Dynamic load C | 20.8 kN |
| Static load Co | 19.6 kN |
| Fatigue load limit Pu | 1 kN |
| Reference speed | 10000 rpm |
| Limiting speed | 2800 rpm |
| Weight | 0.32 kg |
| d2 | 111mm |
| D2 | 124mm |
| r1r2 min | 1mm |
| da min | 110mm |
| da max | 110mm |
| Da max | 125mm |
| ra max | 1mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 13 |
