SKU: 61817-2RS1/C3-SKF

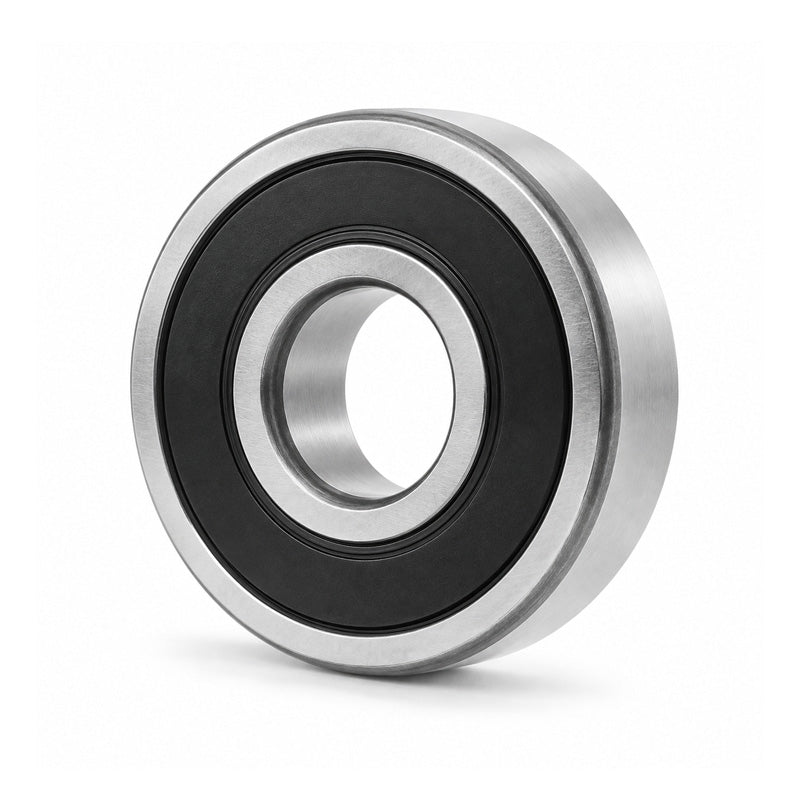

SKF 618172RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 85x110x13mm
Equivalent to: 61817NSEC3 61817DUC3 61817RSC3 61817RSHC3 61817PC3 61817RSRC3 61817LUC3 6817NSEC3 6817DUC3 6817RSC3 6817RSHC3 6817PC3 6817RSRC3 6817LUC3 618172NSEC3 61817DDUC3 618172RSC3 618172RSHC3 61817PPC3 618172RSRC3 61817LLU 68172NSEC3 6817DDUC3 68172RSC3 68172RS1C3 68172RSHC3 6817PPC3 68172RSRC3 6817LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 85mm |
|---|---|
| D | 110mm |
| B | 13mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 20.8 kN |
| Fatigue load limit Pu | 0.88 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 0.27 kg |
| d1 | 93.2mm |
| D2 | 104mm |
| r1r2 min | 1mm |
| da min | 89.6mm |
| Da max | 105mm |
| ra max | 1mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 17 |
