SKU: 61816-2RSR-C3-FAG

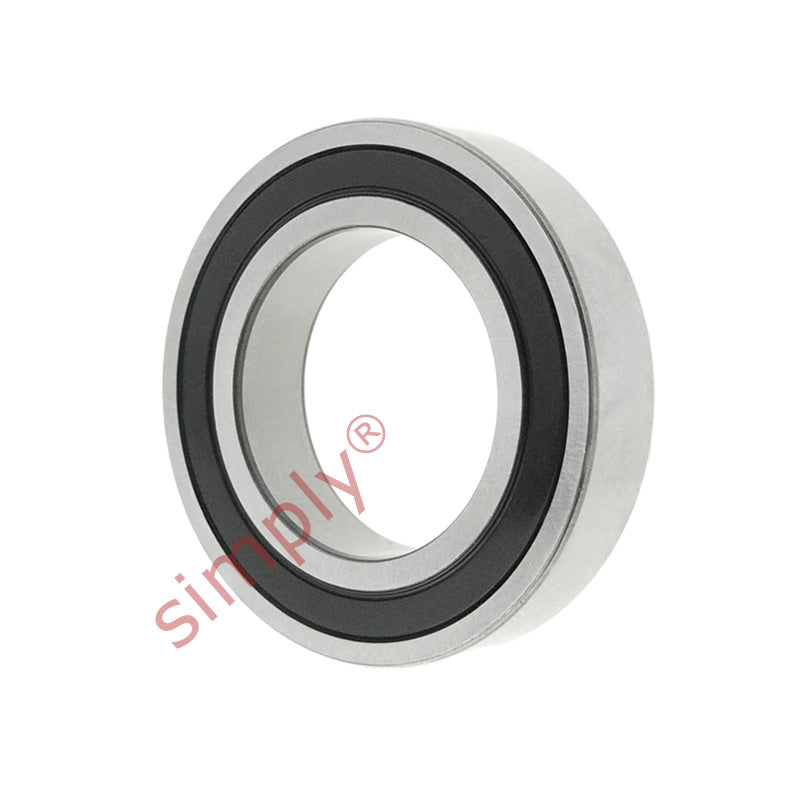

FAG 618162RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 80x100x10mm
Equivalent to: 61816NSEC3 61816DUC3 61816RSC3 61816RSHC3 61816PC3 61816RSRC3 61816LUC3 6816NSEC3 6816DUC3 6816RSC3 6816RSHC3 6816PC3 6816RSRC3 6816LUC3 618162NSEC3 61816DDUC3 618162RSC3 618162RS1C3 618162RSHC3 61816PPC3 61816LLU 68162NSEC3 6816DDUC3 68162RSC3 68162RS1C3 68162RSHC3 6816PPC3 68162RSRC3 6816LLUC3
Out of stock
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 100mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 80mm |
|---|---|
| D | 100mm |
| B | 10mm |
| Dynamic load C | 13 kN |
| Static load Co | 15 kN |
| Fatigue load limit Pu | 0.64 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 3600 rpm |
| Mass | 0.15 kg |
| d1 | 86.6mm |
| d2 | 95.5mm |
| D2 | -mm |
| r1r2 min | 0.6mm |
| da min | 83.2 |
