SKU: 61809-C3-NKE

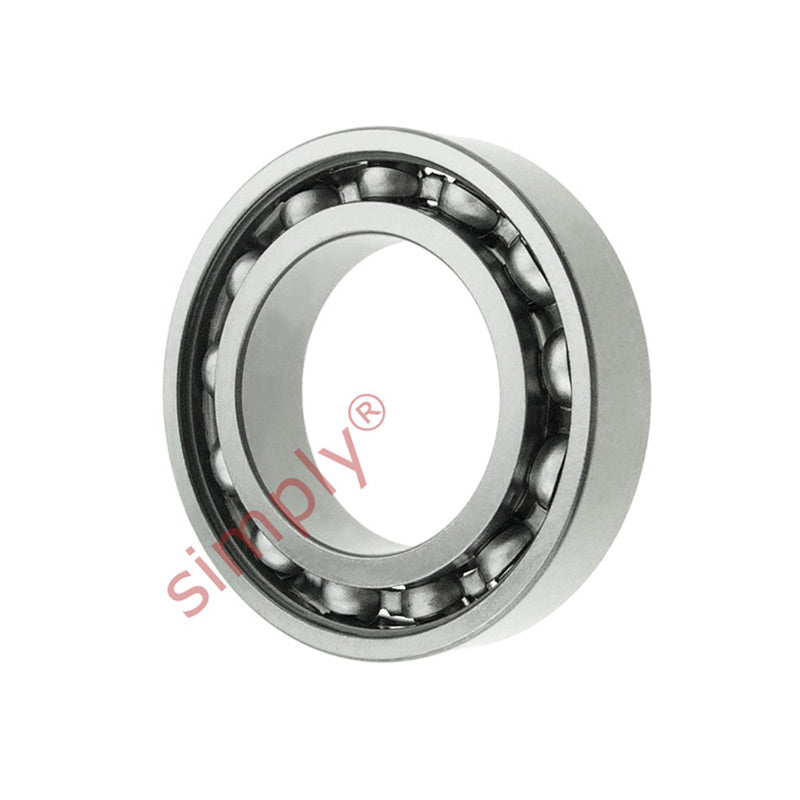

NKE 61809C3 Open Type Thin Section Deep Groove Ball Bearing 45x58x7mm
NKE 61809C3 Open Type Thin Section Deep Groove Ball Bearing 45x58x7mm
Regular price
$47.48
ex VAT
Regular price
Sale price
$47.48
ex VAT
In stock
Price Break
4+
$22.52
10+
$21.25
20+
$21.00
30+
$20.75
50+
$20.49
75+
$20.24
100+
$18.98
200+
$18.72
250+
$18.47
500+
$18.22
1000+
$17.71
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Thin Section Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 58mm |
| B | 7mm |
| Dynamic load | 6.63 kN |
| Static load | 6.1 kN |
| Fatigue load limit Pu | 0.26 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.04 kg |
| d1 | 49.1mm |
| D1 | 53.9mm |
| D2 | n/amm |
| r1r2 min | 0.3mm |
| da min | 47mm |
| Da max | 56mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor Cor | 17 |
