SKU: 61808-2RS1/C3-SKF

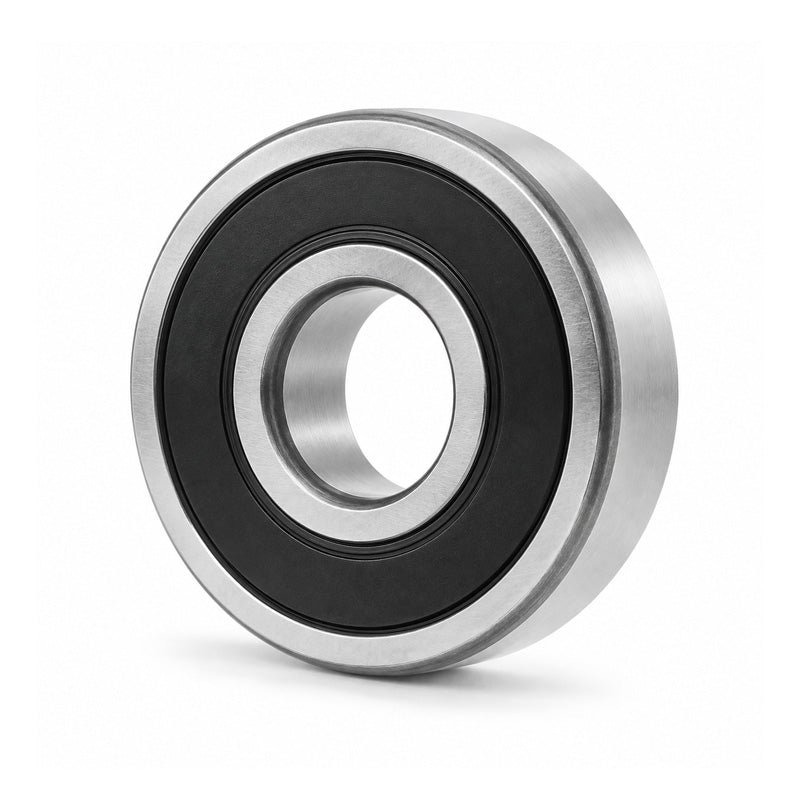

SKF 618082RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 40x52x7mm
Equivalent to: 61808NSEC3 61808DUC3 61808RSC3 61808RSHC3 61808PC3 61808RSRC3 61808LUC3 6808NSEC3 6808DUC3 6808RSC3 6808RSHC3 6808PC3 6808RSRC3 6808LUC3 618082NSEC3 61808DDUC3 618082RSC3 618082RSHC3 61808PPC3 618082RSRC3 61808LLU 68082NSEC3 6808DDUC3 68082RSC3 68082RS1C3 68082RSHC3 6808PPC3 68082RSRC3 6808LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 40mm |
|---|---|
| D | 52mm |
| B | 7mm |
| Dynamic load C | 4.94 kN |
| Static load Co | 3.45 kN |
| Fatigue load limit Pu | 0.186 kN |
| Reference speed | 26000 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.034 kg |
| d2 | 42.6mm |
| D2 | 49.6mm |
| r1r2 min | 0.3mm |
| da min | 42mm |
| da max | 42.5mm |
| Da max | 50mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 14 |
