SKU: 608-2Z-SKF

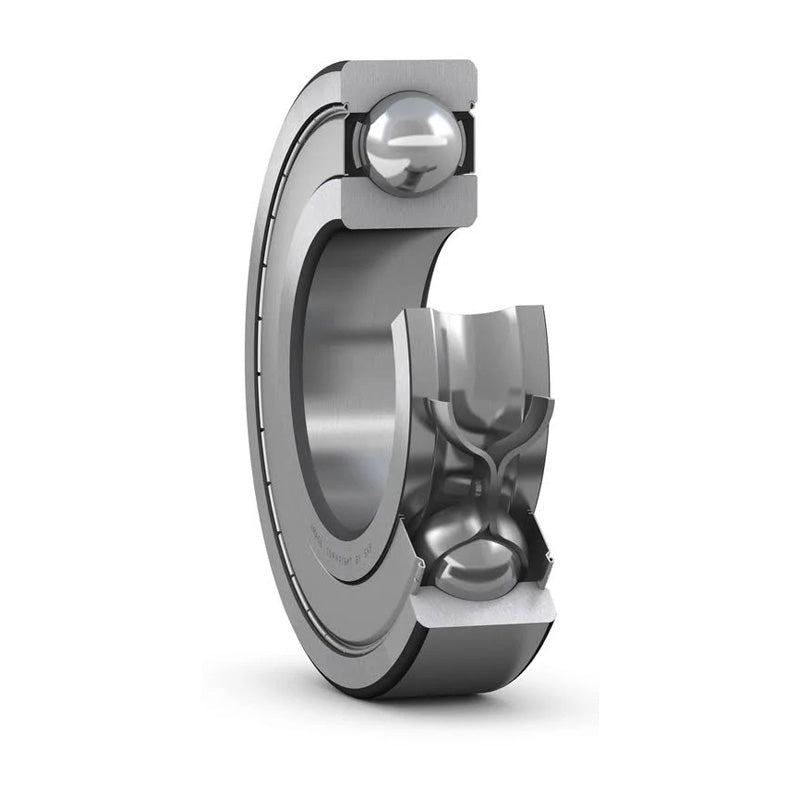

SKF 6082Z Metal Shielded Deep Groove Ball Bearing 8x22x7mm
Equivalent to: 608ZZE 608ZZ 608.2Z 608KDD 608DD 608FF 6082ZR 2809 Z809 608ZZ 6082Z 608ZZ
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 8mm |
|---|---|
| D | 22mm |
| B | 7mm |
| Dynamic load C | 3.45 kN |
| Static load Co | 1.37 kN |
| Fatigue load limit Pu | 0.057 kN |
| Reference speed | 75000 rpm |
| Limiting speed | 38000 rpm |
| Weight | 0.012 kg |
| d1 | 12.1mm |
| d2 | 0mm |
| D2 | 19.2mm |
| r1r2 min | 0.3mm |
| da min | 10mm |
| da max | 0mm |
| Da max | 20mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 12 |
