SKU: 6040-NTN

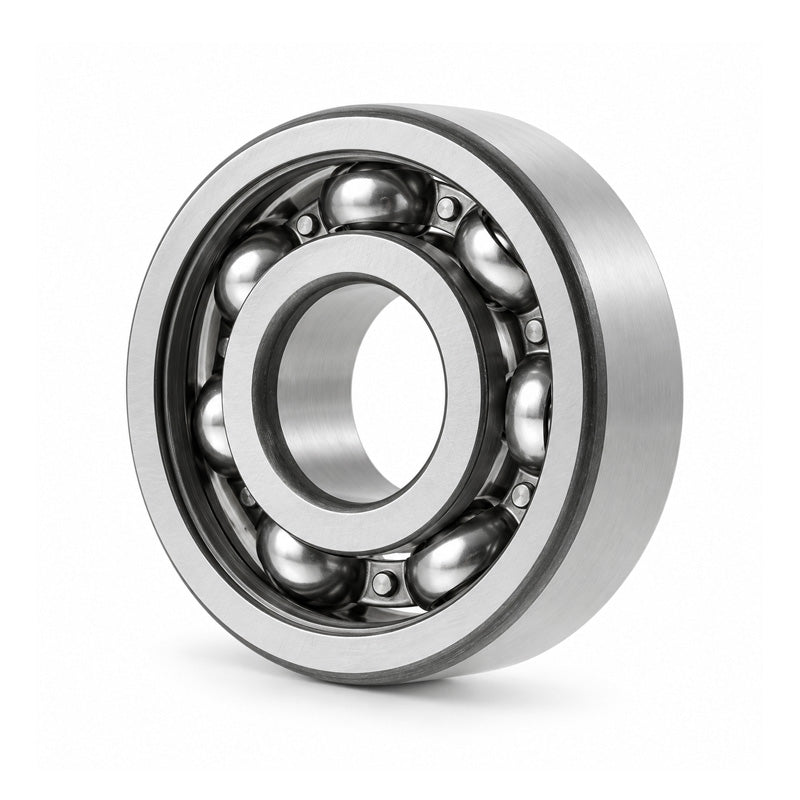

NTN 6040 Open Type Deep Groove Ball Bearing 200x310x51mm
NTN 6040 Open Type Deep Groove Ball Bearing 200x310x51mm
Regular price
$1,156.53
ex VAT
Regular price
Sale price
$1,156.53
ex VAT
Equivalent to: 6040CM 9140K 9140 140KS 6140 3L40 EL200 ELL200
In stock
Price Break
3+
$548.43
5+
$517.62
10+
$511.45
25+
$505.29
49+
$499.13
74+
$492.97
99+
$462.16
199+
$456.00
249+
$449.83
499+
$443.67
999+
$431.35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 310mm
- Width:
- 51mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 200mm |
| D | 310mm |
| B | 51mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 241 kN |
| C<sub>or</sub> | 243 kN |
| C<sub>u</sub> | 11.2 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 2000 rpm |
| Oil | 2400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 211mm |
| D<sub>a</sub> Max. | 299mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 11.9 kg |
