SKU: 6036-2Z-EU

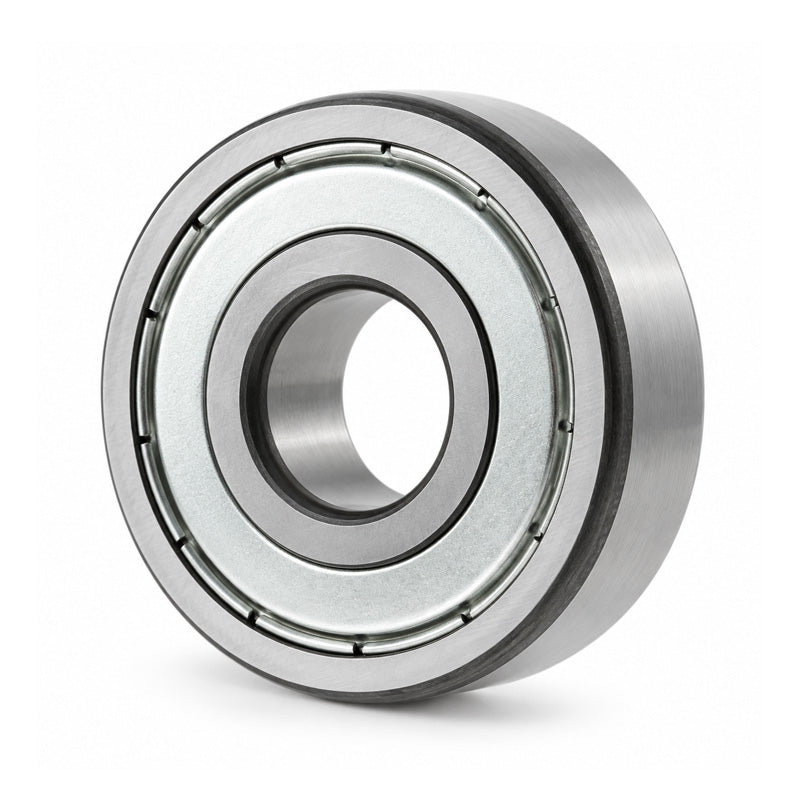

6036ZZ Budget Metal Shielded Deep Groove Ball Bearing 180x280x46mm
Equivalent to: 6036ZZ 60362Z 6036ZZ 60362ZR 6036ZZE 6036FF 6036DD 6036DDC 6036KDDC EL1802Z EL180ZZ 9136KDD 9136FF 136KSFF 773L36 6136PP
Out of stock
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 280mm
- Width:
- 46mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 180mm |
|---|---|
| D | 280mm |
| B | 46mm |
| r min | 2.1mm |
| Dynamic load Cr | 182 kN |
| Static load Cor | 194 kN |
| Speed in grease | 2200 rpm |
| Speed in oil | 2600 rpm |
