SKU: 6032-NTN

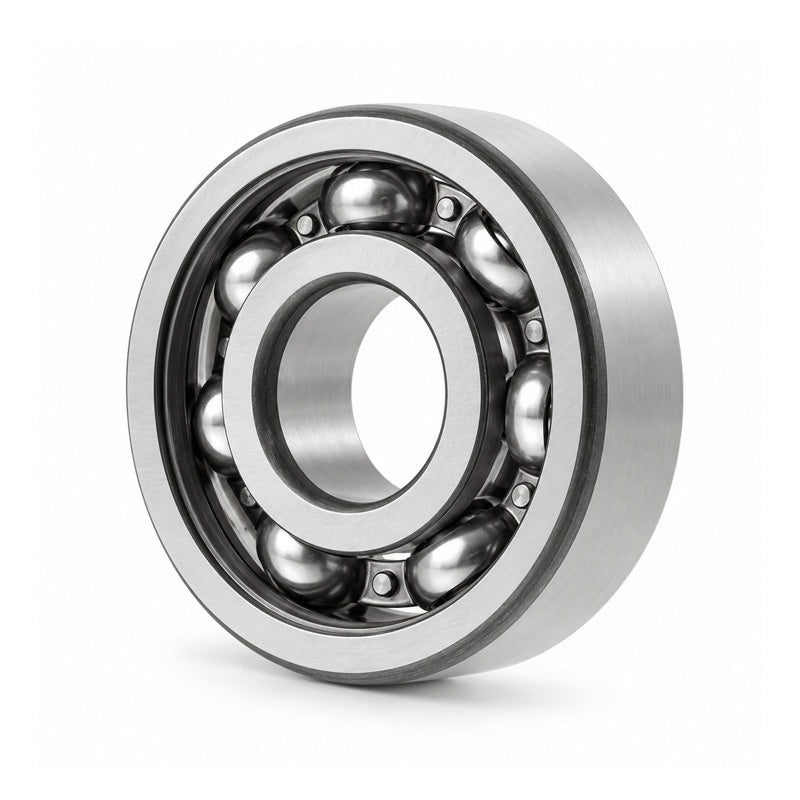

NTN 6032 Open Type Deep Groove Ball Bearing 160x240x38mm
NTN 6032 Open Type Deep Groove Ball Bearing 160x240x38mm
Regular price
$1,042.32
ex VAT
Regular price
Sale price
$1,042.32
ex VAT
Equivalent to: 6032CM 9132K 9132 132KS 6132 3L32 EL160 ELL160
In stock
Price Break
3+
$494.27
5+
$466.50
10+
$460.95
25+
$455.40
49+
$449.84
74+
$444.29
99+
$416.52
199+
$410.97
249+
$405.41
499+
$399.86
999+
$388.75
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 240mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 160mm |
| D | 240mm |
| B | 38mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 158 kN |
| C<sub>or</sub> | 144 kN |
| C<sub>u</sub> | 7.3 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 2600 rpm |
| Oil | 3000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 171mm |
| D<sub>a</sub> Max. | 229mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 5.05 kg |
