SKU: 6030ZZC3/5K-NTN

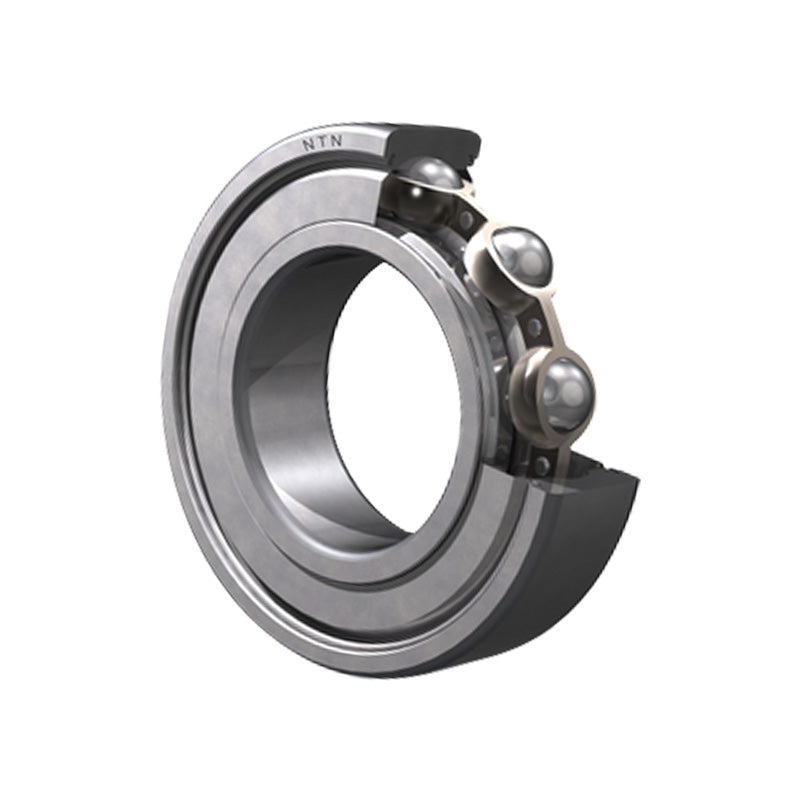

NTN 6030ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 150x225x35mm
Equivalent to: 6030ZZC3 60302ZC3 6030ZZC3 60302ZRC3 6030ZZEC3 6030FFC3 6030DDC3 6030DDCC3 6030KDDCC3 EL1502ZC3 EL150ZZC3 9130KDDC3 9130FFC3 130KSFFC3 773L30C3 6130PPC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 225mm
- Width:
- 35mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 150mm |
| D | 225mm |
| B | 35mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 139 kN |
| C<sub>or</sub> | 126 kN |
| C<sub>u</sub> | 6.55 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 2800 rpm |
| Oil | 3200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 161mm |
| d<sub>a</sub> Max. | 169mm |
| D<sub>a</sub> Max. | 214mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 4.08 kg |
