SKU: 6024NR-NTN

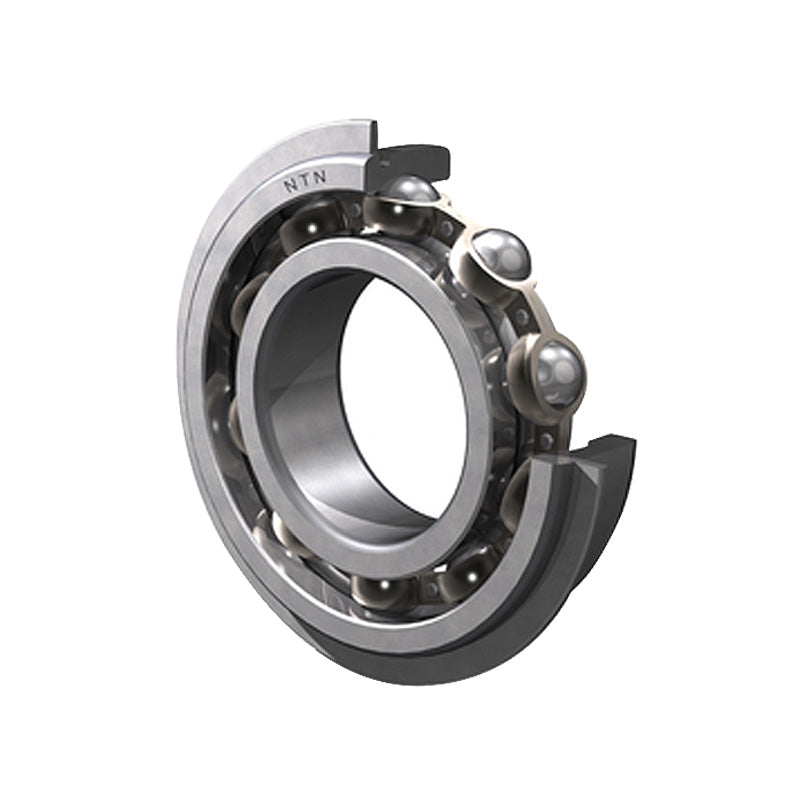

NTN 6024NR Open Type Deep Groove Ball Bearing with Snap Ring 120x180x28mm
NTN 6024NR Open Type Deep Groove Ball Bearing with Snap Ring 120x180x28mm
Regular price
$882.70
ex VAT
Regular price
Sale price
$882.70
ex VAT
Equivalent to: 6024NRCM 9124KG 124KSG 43L24
In stock
Price Break
3+
$418.58
5+
$395.06
10+
$390.36
25+
$385.65
49+
$380.95
74+
$376.25
99+
$352.73
199+
$348.03
249+
$343.33
499+
$338.62
999+
$329.22
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 120mm |
| D | 180mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 94 kN |
| C<sub>or</sub> | 79.5 kN |
| C<sub>u</sub> | 4.65 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 3500 rpm |
| Oil | 4100 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 173.66mm |
| a Max. | 3.71mm |
| b Min. | 3.5mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 192.9mm |
| f Max. | 3.1mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 129mm |
| d<sub>a</sub> Max. | 136mm |
| D<sub>a</sub> Max. | 171mm |
| D<sub>X</sub> (approx) | 195mm |
| C<sub>Y</sub> Max. | 6.4mm |
| C<sub>Z</sub> Min. | 3.1mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 2.07 kg |
